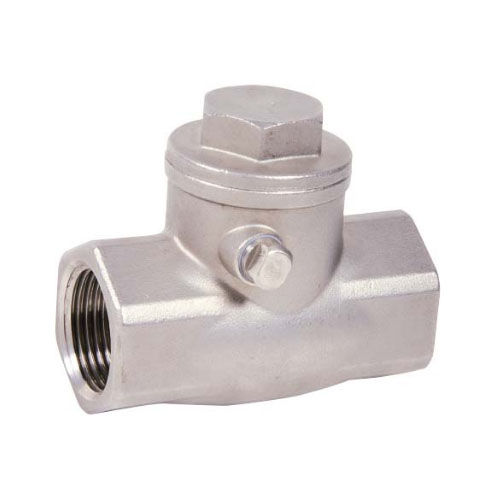

Swing check valve 320 series

female-femalefor the chemical industryfor pharmaceutical applications

The 320 Series of swing check valve can be mounted in vertical and horizontal position. It comes with a flow direction indicator through its arrow. Through its maximum pressure rate of 16 bar, the valve is capable of working with pharmaceutical, petrochemical, chemical industries and other comparable applications. SPECIFICATIONS : • - Stamless Steel stamped check valve • - Ail positions (respect the flow direction indicated by the arrow) • - Short length • - Minimum backpressure for tightness : 0.5 bar up to DN1*1/2.1 bar from DN2" to DN4" USE : • - Chemical and pharmaceutical industries, petrochemical industries, hydraulic installation, compressed • Max Température Ts 10°C • Mm Température Ts :+ 150°C • - Max Pressure Ps : 16 bars RANGE : • - AISI 316 body Female / female BSP cytindncal threaded Rof. 326 from DN 1/4“ to DN 4“ • - AISI 304 body Female / female BSP cylindrtcal threaded Rof. 327 from DN 1/4“ to DN 4“
