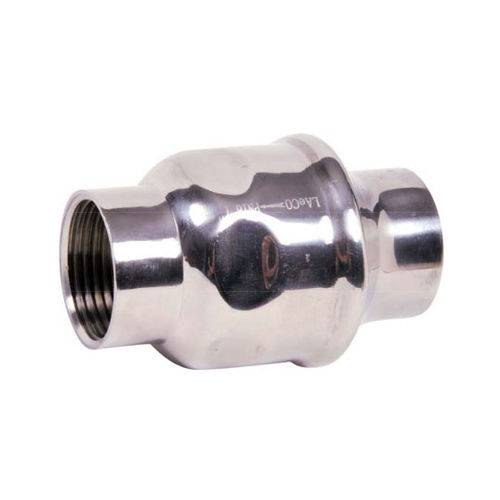

Disc check valve 326 series

female-femalefor the chemical industryfor pharmaceutical applications

This short length stainless steel valve can be connected in all positions. It can cope with a maximum temperature of -10°c, a minimum temperature of + 150°c, and a maximum pressure of 16 bars. SPECIFICATIONS : • - Stamless Steel stamped check valve • - Ail positions (respect the flow direction indicated by the arrow) • - Short length • - Minimum backpressure for tightness : 0.5 bar up to DN1*1/2.1 bar from DN2" to DN4" USE : • - Chemical and pharmaceutical industries, petrochemical industries, hydraulic installation, compressed • Max Température Ts 10°C • Mm Température Ts :+ 150°C • - Max Pressure Ps : 16 bars RANGE : • - AISI 316 body Female / female BSP cytindncal threaded Rof. 326 from DN 1/4“ to DN 4“ • - AISI 304 body Female / female BSP cylindrtcal threaded Rof. 327 from DN 1/4“ to DN 4“
