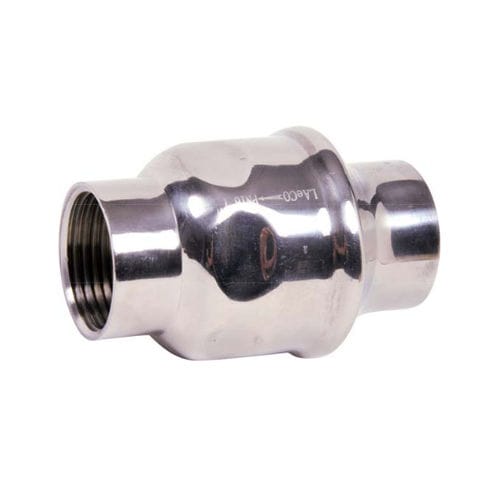

Disc check valve 327 series

for compressed airfemale-femalefor the chemical industry

The short stamped check valve is made in stainless steel. Any desired position is possible in respect to the flow of direction shown by the arrow. It has an operating temperature range of -10°C to +150°C. This check valve is used in many applications such as chemical and pharmaceutical industries, petrochemical industries and hydraulic installation. SPECIFICATIONS : • - Stamless Steel stamped check valve • - Ail positions (respect the flow direction indicated by the arrow) • - Short length • - Minimum backpressure for tightness : 0.5 bar up to DN1*1/2.1 bar from DN2" to DN4" USE : • - Chemical and pharmaceutical industries, petrochemical industries, hydraulic installation, compressed • Max Température Ts 10°C • Mm Température Ts :+ 150°C • - Max Pressure Ps : 16 bars RANGE : • - AISI 316 body Female / female BSP cytindncal threaded Rof. 326 from DN 1/4“ to DN 4“ • - AISI 304 body Female / female BSP cylindrtcal threaded Rof. 327 from DN 1/4“ to DN 4“
