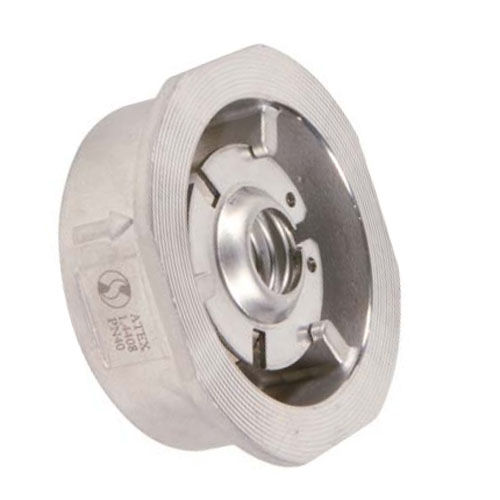

Disc check valve 386 series

threadedwaferfor the chemical industry

386 series disc check valve is designed in spring layout, which permits comprehensive alignment to any flow routes by the arrow. It is integrated with a disc rib guide mechanism, allowing optimal centering capacity. This valve is engineered with stainless steel components that increases its corrosion resistance skill and high temperature tolerance. It is a general solution for chemical plants, pharmaceuticals, petrochemical facilities, and hydraulic installation system. SPECIFICATIONS : • - Stamless Steel stamped check valve • - Ail positions (respect the flow direction indicated by the arrow) • - Short length • - Minimum backpressure for tightness : 0.5 bar up to DN1*1/2.1 bar from DN2" to DN4" USE : • - Chemical and pharmaceutical industries, petrochemical industries, hydraulic installation, compressed • Max Température Ts 10°C • Mm Température Ts :+ 150°C • - Max Pressure Ps : 16 bars RANGE : • - AISI 316 body Female / female BSP cytindncal threaded Rof. 326 from DN 1/4“ to DN 4“ • - AISI 304 body Female / female BSP cylindrtcal threaded Rof. 327 from DN 1/4“ to DN 4“
