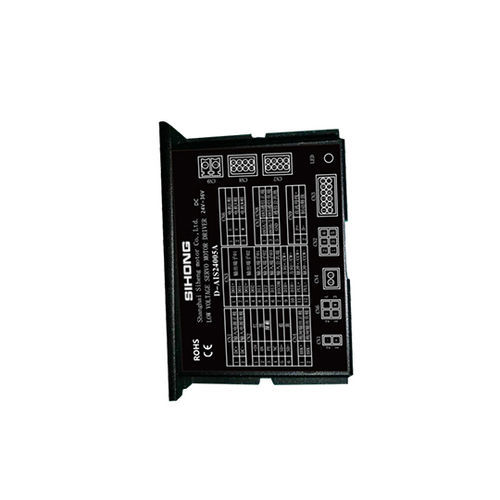

DC servo-drive D – AIS24008A

RS-485Modbus24-36 V

The D – AIS24008A Low-voltage Intelligent Servo Motor Driver offers strong stability, high-precision positioning, and high motor response. It operates with low noise and heat generation, featuring a fine-structured design and strong overload capacity. This driver is equipped with practical and rich functions, ensuring simple and convenient application. It includes protections against over-voltage, under-voltage, overspeed, overcurrent, overload, encoder abnormalities, position deviation, stall, and parameter abnormalities. Technical Specifications: - Drive Model: D – AIS24008A - Voltage Range: 24 – 36V - Rated Current: 8A - Control Methods: Position, Speed, Torque, Communication - Speed Frequency Response: ≥200Hz - Received Pulse Frequency: ≤200kHz - Speed Fluctuation Rate: < ±0.03 (Load 0 – 100%) - Monitoring Functions: Current Speed, DI Input, DO Output, Current Position, Command Input Pulse Accumulation, Average Load Rate, Position Deviation Count, Motor Phase Current, Bus Voltage Value, Module Temperature, Alarm Record, Command Pulse Frequency Corresponding Speed, Operating Status - Home-return Function: 13 Autonomous Modes, Home-point Offset - RS485 Communication: Standard Modbus RTU Protocol, One-to-Two Way Communication Interface Protections include over-voltage, under-voltage, overspeed, overcurrent, overload, encoder abnormalities, position deviation, stall, and parameter abnormalities.
