DC servomotor M60
36 V24 V48 V

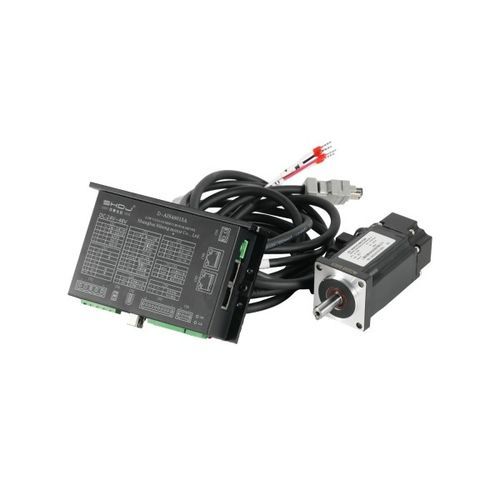

DC servomotor - M60 - Shanghai Siheng Motor Co., Ltd - 36 V / 24 V / 48 V
DC servomotor - M60 - Shanghai Siheng Motor Co., Ltd - 36 V / 24 V / 48 V
DC servomotor - M60 - Shanghai Siheng Motor Co., Ltd - 36 V / 24 V / 48 V - image - 2
DC servomotor - M60 - Shanghai Siheng Motor Co., Ltd - 36 V / 24 V / 48 V - image - 3
DC servomotor - M60 - Shanghai Siheng Motor Co., Ltd - 36 V / 24 V / 48 V - image - 4
DC servomotor - M60 - Shanghai Siheng Motor Co., Ltd - 36 V / 24 V / 48 V - image - 5
Add to favorites
Compare this product

Characteristics

Type
DC
Voltage
24 V, 48 V, 36 V
Configuration
permanent magnet, with brake, with coder
Protection class
IP54
Number of poles
10-pole
Applications
for robotics
Other characteristics
CANopen, EtherCAT, RS-485, closed-loop
Power

Max.: 600 kW
(815.77 hp)

Min.: 200 kW
(271.92 hp)

Intensity

Max.: 40 A

Min.: 12 A

Torque

Max.: 3.92 Nm
(2.891244 ft.lb)

Min.: 0.64 Nm
(0.47204 ft.lb)

Rotational speed

Max.: 3,200 rpm
(20,106.193 rad.min-1)

Min.: 3,000 rpm
(18,849.5559 rad.min-1)

Diameter

60 mm
(2.36 in)

Description

Technical Parameters Technical SpecificationsMotor DimensionDriver DimensionProduct Category: Split DC servo motor and driverSeries: 60mm Series DC Servo Motor and driverTags: bldc motor, Brushless motor, Closed-cloop stepper motor, DC servo Motor, Motor Driver, servo motor and driver, stepper motorKey Features / Technical Specifications:DC Servo Motor and Driver60mm SeriesBrushless DC (BLDC) technologyClosed-loop controlIncludes both motor and driverDetailed technical drawings and dimensions available in images above

Catalogs

M 60
M 60
1 Pages
