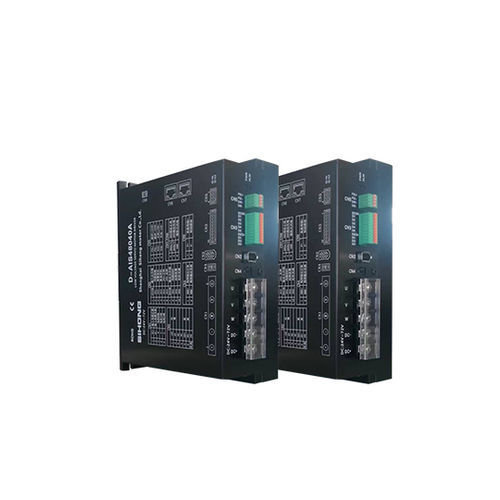

DC servo-drive D – AIS48050A

RS-485Modbus RTU24 V

Product DetailsIt features strong stability, high-precision positioning, high motor response, low noise, low heat generation, fine-structured design, strong overload capacity, practical and rich functions, and simple and convenient application. It has protections against over-voltage, under-voltage, overspeed, over-current, overload, encoder abnormalities, position deviation, stall, parameter abnormalities, etc.Technical SpecificationsDrive ModelVoltage Range (V)Rated Current (A)D – AIS24008A24 – 368D – AIS48015A24 – 4815D – AIS48025A24 – 6025D – AIS48050A24 – 7250D – AIS48100A36 – 72100D – AIS72200A48 – 96200D – AIS72300A48 – 96300Control Method① Position Control ② Speed Control ③ Torque Control ④ Communication ControlControl CharacteristicsSpeed Frequency Response: ≥200Hz, Received Pulse Frequency ≤200kHz, Speed Fluctuation Rate: < ±0.03 (Load 0 – 100%): < ±0.02×(0.9 – 1.1) Power Supply VoltageMonitoring FunctionCurrent Speed, DI Input, DO Output, Current Position, Command Input Pulse Accumulation, Average Load Rate, Position Deviation Count, Motor Phase Current, Bus Voltage Value, Module Temperature, Alarm Record, Command Pulse Frequency Corresponding Speed, Operating Status, etc.Home – return Function13 Kinds of Autonomous (Search) Home – return Modes, and Home – point Offset FunctionRs485 FunctionFollows Standard Modbus – Rtu Protocol, One – to – Two Two – way Communication Interface for Easy Networking and Parallel ConnectionDriver Installation DimensionsProduct Model: D – AIS48050ARated Voltage: 24 – 72VRated Current: 50ASplit – type Drive Hardware InterfaceApplicable drive models: D – AISXX005A / D – AISXX0015A / D – AISXX0025A / D – AISXX0040A / D – AISXX00100A / D – AISXX00200ASplit – type AI MOTOR Drive Interface DiagramSerial NumberSymbolFunctionRemarks1UMotor U – phasePower cable JVW interface for adapting the motor2VMotor V – phase3WMotor W – phase4DC –Negative pole of input power supplyThe external input DC power supply must distinguish positive and negative poles; voltage range: DC48V5DC+Positive pole of input power supply...(Further detailed tables and wiring diagrams are available in the original product page)Selection Specification Reference Table for Discharging Braking Resistor of Split – type Drive Cn9 InterfaceSplit – type Drive ModelRated Output CurrentRequirement for Resistance Value of External Braking ResistorRequirement for Power of External Braking ResistorD – AISXX008A8A10 ohms – 30 ohms rangeGreater than 100WD – AISXX0015A15A10 ohms – 30 ohms rangeGreater than 100WD – AISXX0025A25A10 ohms – 30 ohms rangeGreater than 100WD – AISXX0050A50A5 ohms – 15 ohms rangeGreater than 200WD – AISXX00100A100A5 ohms – 15 ohms rangeGreater than 200WD – AISXX00200A200A5 ohms – 15 ohms rangeGreater than 200WStandard Wiring DiagramInput Power Supply Wiring: The input power supply terminals must strictly distinguish positive and negative poles. The input power supply voltage range may vary for different models. The output capacity of the external switching power supply should be 1.5 times the rated current of this product.High-speed Pulse Signal Wiring: Supports pulse input with a wide voltage range of 5 – 24V, and the maximum received pulse frequency is 200KHZ. Use double-shielded wires for pulse control lines to avoid interference.DI and DO Wiring: The control voltage of the input terminals is valid at DC12 – 24V. Each DI/DO can be freely assigned different functions.RS485 Communication Wiring: For multi-slave connection, add a 120-ohm terminal resistor to the last slave if the communication signal noise is large.Characteristics / Technical SpecificationsModel: D – AIS48050ARated Voltage: 24 – 72VRated Current: 50AControl Methods: Position, Speed, Torque, CommunicationSpeed Frequency Response: ≥200HzPulse Frequency: ≤200kHzProtections: Over-voltage, Under-voltage, Overspeed, Over-current, Overload, Encoder Abnormalities, Position Deviation, Stall, Parameter AbnormalitiesMonitoring: Current Speed, DI/DO, Position, Pulse Accumulation, Load Rate, Phase Current, Bus Voltage, Module Temperature, Alarm Record, etc.RS485: Modbus-RTU Protocol
