DC servomotor 110mm Series
brushless48 V60 V

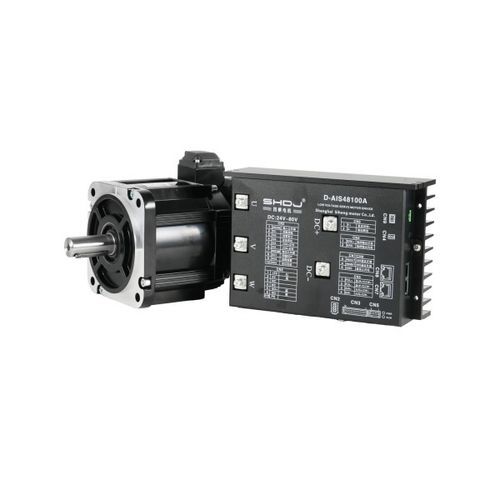

DC servomotor - 110mm Series - Shanghai Siheng Motor Co., Ltd - brushless / 48 V / 60 V
DC servomotor - 110mm Series - Shanghai Siheng Motor Co., Ltd - brushless / 48 V / 60 V
DC servomotor - 110mm Series - Shanghai Siheng Motor Co., Ltd - brushless / 48 V / 60 V - image - 2
DC servomotor - 110mm Series - Shanghai Siheng Motor Co., Ltd - brushless / 48 V / 60 V - image - 3
DC servomotor - 110mm Series - Shanghai Siheng Motor Co., Ltd - brushless / 48 V / 60 V - image - 4
DC servomotor - 110mm Series - Shanghai Siheng Motor Co., Ltd - brushless / 48 V / 60 V - image - 5
DC servomotor - 110mm Series - Shanghai Siheng Motor Co., Ltd - brushless / 48 V / 60 V - image - 6
Add to favorites
Compare this product

Characteristics

Type
DC, brushless
Voltage
48 V, 60 V
Configuration
with brake
Protection class
IP65
Number of poles
4-pole, 10-pole
Applications
industrial
Other characteristics
low-voltage, closed-loop
Power

2 kW
(2.72 hp)

Intensity

6 A, 41 A, 56 A

Torque

5 Nm, 6 Nm, 6.4 Nm
(3.687811 ft.lb, 4.425373 ft.lb, 4.720398 ft.lb)

Description

Technical ParametersProduct SpecificationsM-110 series low-voltage servo motorModelVoltage (VAC)Current (A)Torque (Nm)Weight (kg)Motor Length (mm)M110AIS204 – 48 – C05030 – B1 – 44841204M110AIS219 – 48 – C06030 – B1 – 46034.5219M110AIS219 – 48 – C06430 – B1 – 44856219Motor ModelM110AIS204 – 48 – C05030 – B1 – 4M110AIS219 – 48 – C06030 – B1 – 4M110AIS219 – 48 – C06430 – B1 – 4Rated Power (kW)150018002000Rated Voltage (V)484848Rated Current (A)416.056Rated Speed (rpm)300030003000Maximum Speed (rpm)––4000Rated Torque (Nm)5.066.4Line Back-EMF Constant9.2616.7±10%Line Resistance (Ω)0.04±10%0.780.02±10%Line Inductance (mh)0.07±10%2.680.03±%Moment of Inertia6.37.67.6±%L without Brake (mm)204219219L with Brake (mm)269284284Number of Rotor Pole Pairs (P)484Motor Insulation ClassClass FProtection ClassIP65Motor DimensionDriver DimensionProduct Category: 110 Series DC Servo Motor and driver, Split DC servo motor and driverTags: bldc motor, Brushless motor, Closed-cloop stepper motor, DC servo Motor, Motor Driver, servo motor and driver, stepper motorKey Features / Technical Specifications:Series: M-110 low-voltage DC servo motorRated Power: 1.5kW, 1.8kW, 2.0kWRated Voltage: 48VRated Speed: 3000rpmMaximum Speed: up to 4000rpm (model dependent)Rated Torque: up to 6.4NmProtection Class: up to IP65Motor Insulation: Class FAvailable with/without brakeMultiple model variants: M110AIS204 – 48 – C05030 – B1 – 4, M110AIS219 – 48 – C06030 – B1 – 4, M110AIS219 – 48 – C06430 – B1 – 4
