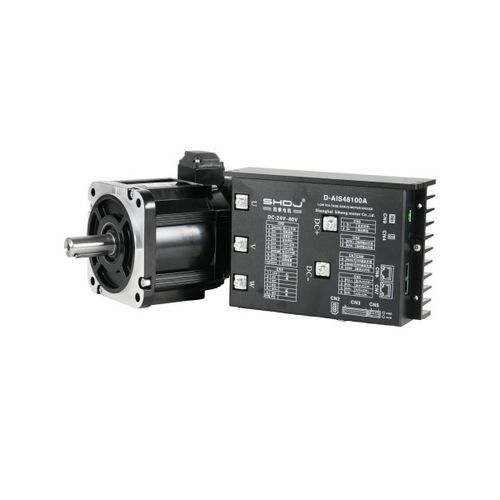

DC servomotor M180AIS series

72 VIP654-pole

Technical Parameters Technical Specifications Model: M180AIS219 – 72 – C35015 – B1 – 5 Voltage (VAC): 72 Current (A): 90 Torque (Nm): 35 Motor Length (mm): 219.5 Model: M180AIS254 – 72 – C96015 – B1 – 5 Voltage (VAC): 72 Current (A): 125 Torque (Nm): 48 Motor Length (mm): 254 Rated Voltage (V): 72 Rated Power (W): 5500 / 7500 Rated Current (A): 90 / 125 Rated Torque (Nm): 35 / 48 Peak Torque (Nm): 70 / 96 Rated Speed (rpm): 1500 ± 10% Maximum Speed (rpm): 1800 ± 10% / 1900 ± 10% Length (L mm): 219.5 / 254 Length (L mm) + Shaft (mm): 284.5 / 319 Line Resistance (Ω): 11.3 ± 10% / 14 ± 10% Line Inductance (mH): 0.3 ± 20% / 0.21 ± 20% Moment of Inertia (kg·m²×10⁻⁴): 74 ± 10% / 89 ± 10% Torque Constant (Nm/A): 0.425 ± 10% / 0.418 ± 10% Electrical Time Constant (ms): 26.5 / 15 Wiring Method: Y Number of Phases: 3 Number of Rotor Pole Pairs (P): 5 Motor Insulation Class: Class F Protection Class: IP65 (except shaft)
