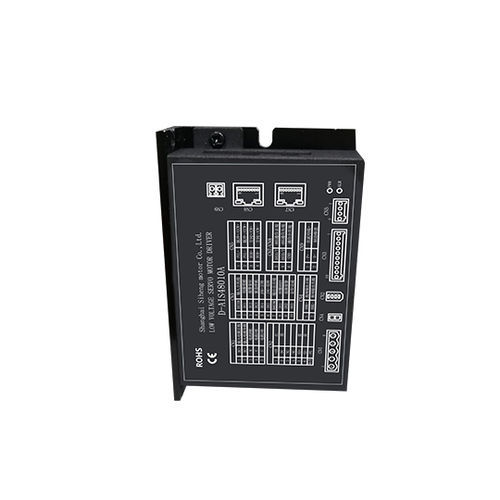

DC servo-drive D – AIS48015A

ModbusRS-48524-48 V

The D – AIS48015A is a low-voltage intelligent servo motor driver offering strong stability, high-precision positioning, and high motor response. It operates with low noise and heat generation, featuring a well-structured design and strong overload capacity. This driver is equipped with practical and rich functions, ensuring simple and convenient application. It includes protections against over-voltage, under-voltage, overspeed, over-current, overload, encoder abnormalities, position deviation, stall, and parameter abnormalities. Technical Specifications: - Drive Model: D – AIS48015A - Voltage Range: 24 – 48V - Rated Current: 15A Control Methods: - Position Control - Speed Control - Torque Control - Communication Control Monitoring Functions: - Current Speed - DI Input - DO Output - Current Position - Command Input Pulse Accumulation - Average Load Rate - Position Deviation Count - Motor Phase Current - Bus Voltage Value - Module Temperature - Alarm Record - Command Pulse Frequency Corresponding Speed - Operating Status RS485 Function: - Standard Modbus-RTU Protocol - Two-way Communication Interface Home-return Function: - 13 Autonomous Modes - Home-point Offset
