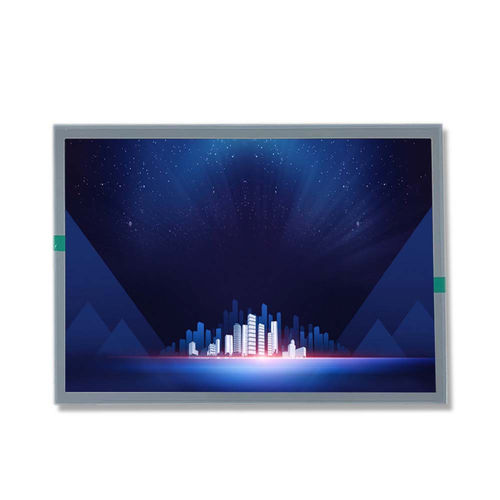

10.4" display module HG104VG002-V0

LCD/TFTcolorIPS

HG104VG002 | 10.4 inch TFT LCD Display | IPS | LVDS Interface | 640x480 Resolution | 500 Brightness | The 10.4-inch TFT LCD screen is a high-quality display panel featuring an IPS technology, which ensures excellent color reproduction and wide viewing angles. With its LVDS interface, it provides a reliable and high-speed data transmission between the display module and the controller. This display offers a resolution of 640x480 pixels, delivering sharp and clear visual content. The high resolution allows for detailed graphics, images, and text, enhancing the overall viewing experience. Whether used in industrial applications, medical devices, or multimedia systems, this display ensures vibrant and lifelike visual representation. Hongguang Display offers the option of a custom solution with either a capacitive or resistive touchscreen. The material is RoHS-compliant. Diagonal: 10.4 (inch) Resolution: 640x480 (pixel) Display Type: IPS Display Mode: Normally Black Optimal View: ALL Touch Screen: Custom Module Dimensions: 230.00 x 180.20 x 10.50 (mm) (W x H x D) Active Area: 211.20 x 158.40 (mm) (W x H) Luminance: 500 (cd/m2) Interface: LVDS Operating Temperature: -20~+70 (°C) Storage Temperature: -30~+80 (°C)
