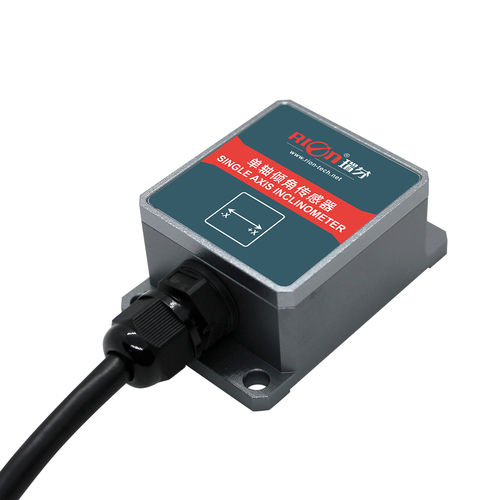

Single-axis inclinometer LCA310T/LCA320T

voltage outputMEMScapacitive

VOLTAGE TYPE SINGLE/DUAL AXIS INCLINOMETER Single and biaxial inclination measurement Accuracy: 0.1 ° Wide voltage input 9～36V Output mode 0～5V Wide temperature operation -40～+ 85 ℃ IP67 protection level High anti-vibration performance> 3500g Small size 55 × 37 × 24mm (customizable) Product Description LCA310T/LCA320T is a small-volume low-cost single-axis tilt sensor developed by RION technology. The output voltage is internally quadratic linearity corrected. It is a linearity voltage output tilt sensor. It is mainly aimed at applications where volume and cost are highly restrictive. Due to the built-in tilting unit of the latest technology micro-electromechanical production process, the volume is small, the power consumption is low, and the consistency and stability of the micro-electromechanical process are very high. The working temperature reaches industrial level -40 ~ +85 ℃, which is a high cost performance Inclination module.This product adopts the non-contact measurement principle, which can output the current inclination angle in real time. It is simple to use, small size, strong resistance to external electromagnetic interference, and strong ability to withstand shock and vibration; it is an ideal choice for industrial equipment and platform measurement attitude!
