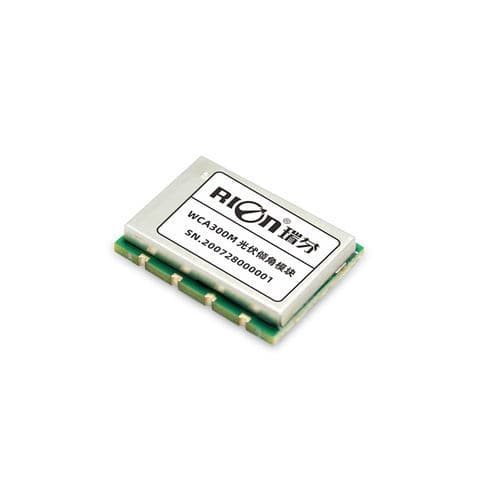

Single-axis inclinometer WCA300M

TTLMEMSIP67

Product Overview
The RION WCA300M is a single-axis inclination (tilt) module designed for industrial embedding and SMT placement. It integrates a micro-mechanical sensing unit with an anti‑jamming platform for stable long-term operation across a wide temperature range. Modules undergo factory calibration to minimize zero-bias, cross-axis and linearity errors. Tape packaging enables direct automatic placement with SMT machines.

Key features

• Measurement range: 0–360°
• Resolution: 0.1°
• Accuracy: ±0.2° (at 25°C)
• Output: TTL
• Operating voltage: DC 3.3–7 V
• Operating temperature: -40 to +85 °C
• Ingress protection: IP67
• Packaging: Tape for SMT placement
• Estimated lifespan: up to 10 years

Scope of application

• Solar PV tracking control
• Bridge monitoring
• Rail/track monitoring

Parameters

• Model: WCA300M
• Measure range (single axis): 0–360 °
• Resolution: 0.1 °
• Measure accuracy (25°C): ±0.2 °
• Temperature drift: ±0.02 °/°C (-40 to +85 °C)
• Response time (no filtering): 0.1 s
• Zero deviation: ±0.1 °
• Static operating current (DC5V): 10 mA
• Power-on time: 1 s
• Operating voltage: DC 3.3–7 V
• Output interface: TTL
• Output load: ≥100 MΩ
• Shock: 100 g @ 11 ms, 3 axial directions (half-sine)
• Anti-vibration: 10 grms, 10–1000 Hz
• MTBF: ≥50000 hours
• Ingress protection: IP67
• Weight: 30 g

Dimensions
Shell size: L24.5×W19×H4 mm

Notes
Tape packaging for SMT automatic placement. Each module calibrated to reduce zero-bias, cross-axial and linearity errors. Estimated lifespan up to 10 years.

Technical specifications

• Type: Single-axis tilt/inclinometer module
• Output format: TTL
• Operating range and environmental compliance: -40 to +85 °C, EN61000 / GBT17626 tested
• Packaging: Tape for direct SMT placement
• Typical applications: PV tracking, structural and rail monitoring
