1-axis inclinometer HCA510T-N

analogvoltage outputMEMS

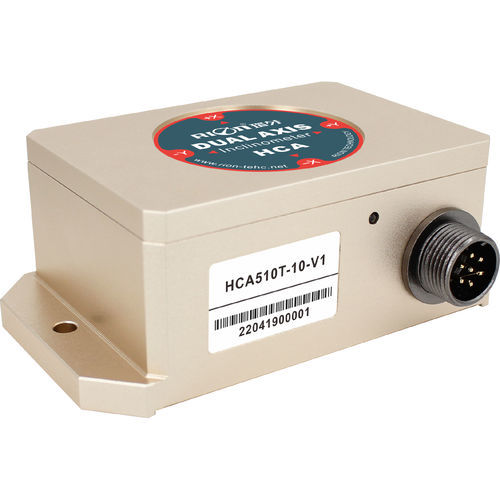

VOLTAGE TYPE INCLINOMETER Single axis inclination measuremen Accuracy: 0.005° Wide voltage input 9～36V Output mode 0～5V Wide temperature operation -40 ℃～+ 85 ℃ IP67 protection High vibration resistance> 2000g Product Description HCA510T-N is a high-precision analog voltage output single axis inclination sensor. The highest precision in a small range can reach 0.003 °. It is one of the few high-precision inclinometers in China. Its function is mainly used to measure the inclination of the object based on horizontal plane. Built-in micro solid pendulum ,by measuring the static gravity field changes then convert into inclination change,the changes in mode output voltage (0-5V).The internal use high-resolution differential digital-to-analog converter, by the internal MCU system secondary linearity and temperature correction, the customer no need to do a secondary linearity correction, meanwhile also reducing the error caused by environmental changes on the accuracy of the product.This product uses non-contact measurement principle, can real-time output current posture inclination，Simple to use, and no need to retrieve the relative changed surface to install.Latest MEMS higher technology production, high-precision, small size, strong resistance to external electromagnetic interference ability, the ability to withstand shock and vibration. It is the ideal choice for industrial equipment, platform measure attitude!
