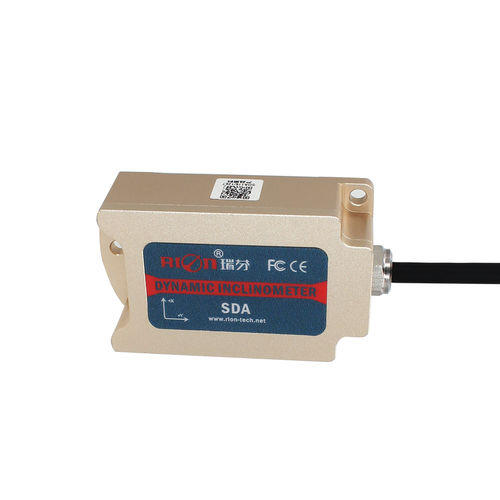

2-axis inclinometer SDA118T/SDA128T

4-20 mAcurrent outputMEMS

SDA118T/SDA128T is an industrial grade current output inclinometer with integrated dynamic and static dual mode combination algorithm. According to different working conditions, the product automatically switches between dynamic and static measurement modes. High-precision measurement of products is guaranteed in a variety of work environments. When the working environment is in static mode, the inclinometer will adopt a static algorithm inside. When the working environment is in dynamic mode, the dynamic algorithm will be adopted inside the inclinometer to maintain the static high precision and ensure the dynamic high-precision measurement of the object. The standard current is 4~20mA output, and the inclination of the biaxial direction is output at the same time, which can transmit up to 2000 meters over long distances. The attitude parameters (roll and pitch) of the motion carrier can be measured. The output signal has strong anti-interference ability and is professionally applied to engineering machinery equipment working in harsh environments. The products are produced by the latest MEMS sensing production process, and the temperature error and nonlinear error are accurately compensated and corrected. The highest precision of small range can reach 0.03° (refer to the product performance table for more precision indicators), and the accuracy is high.
