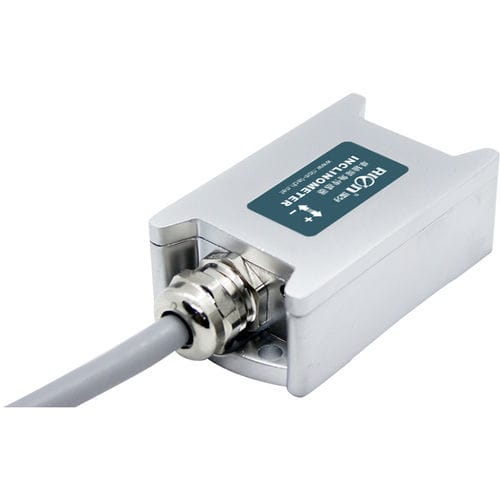

1-axis inclinometer MCA418T/428T

4-20 mAcapacitiveplatform

INCLINOMETER Output current: 4~20mA Six installation methods Power supply: 9~36V IP67 Product Description MCA418T/428T series tilt sensor is a new low cost tilt angle measurement product developed independently by RION. It adopts the latest anti_interference platform design and integrates a new micro_mechanical sensing unit. It has wide working temperature, excellent anti_vibration and long_term stable and reliable performance.This product adopts the non_contact principle to measure the tilt angle. The internal capacitive micromechanical unit measures the component generated by the gravity of the earth to solve the realtime tilt angle. The installation is simple and convenient. It only needs to be fixed on the object being measured and there is no need to find fixed shaft and rotating shaft. Variety of installation methods could meet customer different measurement needs. It is an ideal sensor for construction machinery vehicles, agricultural machinery, solar tracking and other industrial equipments.
