Centrifugal pump slurrysubmersibleindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- slurry
- Priming
- submersible
- Domain
- industrial
- Applications
- sump
- Other characteristics
- elastomer-lined, vertical
- Flow
Min.: 54 m³/h
(1,906.992 ft³/h)Max.: 289 m³/h
(10,205.93868 ft³/h)- Head
Min.: 8.5 m
(27'10" )Max.: 40 m
(131'02" )- Power
Min.: 0 kW
(0 hp)Max.: 75 kW
(101.97 hp)
Description

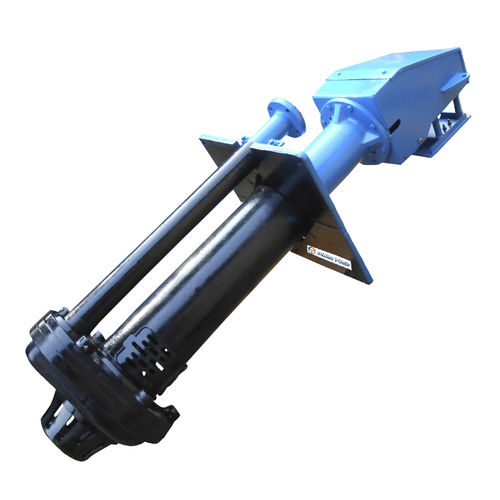

The rubber lined sump pump are no submerged bearings or seals cantilevered, centrifugal vertical slurry pumps, which ideal for a variety of submerged suction pumping applications.
These pumps operate well in a variety of sump conditions, submersed in water and sitting on the bottom of the sump. It can also be readily applied on floating dewatering or other floating pump platforms, to convey high-viscosity minerals mixture with high abrasive, rough particles. The SVR Vertical Rubber Pumps feature full rubber covering for corrosion resistance.
Specification:
Discharge Size(mm): 65
Capacity (m³/h): 54-289
Head (m): 8.5-40
Speed (r/min): 500-1200
Max. Efficiency η%: 62
Allowable Max. Power (Kw): 75
Standard Submerged Depth (mm): 1200,1500,1800
