Slurry pump

submersiblecentrifugalmining and quarrying

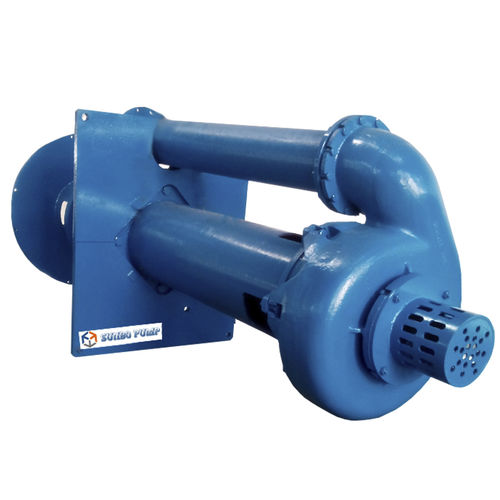

The vertical centrifugal sump pumps are vertical, centrifugal slurry pumps submerged in sump to work.They are designed for delivering abrasive,large particle and high density slurries. These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties. Specification: Discharge Size(mm): 300 Capacity (m³/h): 540-1548 Head (m): 2.5-26 Speed (r/min): 350-700 Max. Efficiency η%: 60 Allowable Max. Power (Kw): 200 Standard Submerged Depth (mm): 1800,2100,2400 Advantages: The semi-open impeller design has vanes on both sides to balance the centrifugal forces to ensure stable operation. Wide flow passage supports large particle and high viscosity solids to flow past. The sump pump casing is bolted to the support plate. The physical layout of the submersible sump pump simplifies maintenance operations The immersed vertical design, no need of sealing water. Much simply in operation. The double screen filters are set at the suction side to stop big particles out of the slurry. Protect pump life time. Installation Types: DC: The motor mounting base is set above the bearing assembly, connect with couplings. It is easy to install and repair. BD: A V-belt is used to connect the motor shaft to pump shaft. The motor frame is above the bearing assembly. In this way, it is easy to replace the grooved wheels. The purpose of swapping grooved wheels is to change the rotary speed of the pump to meet different pump working conditions or conform to the worn-down sump pump.
