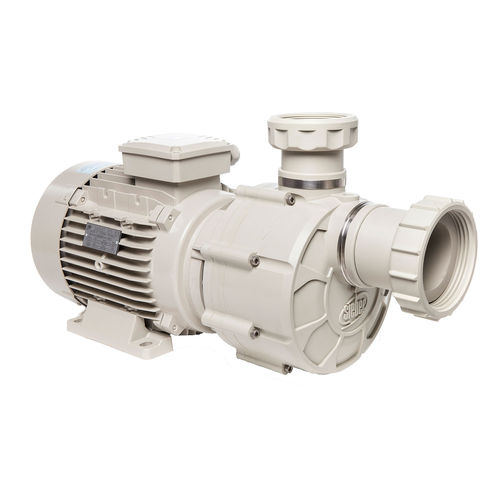

Effluent pump AP18HPelectricself-primingcentrifugal
Add to favorites
Compare this product
Characteristics
- Fluid
- for effluents
- Operation
- electric
- Priming
- self-priming
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- industrial
- Applications
- circulation, for high-pressure applications
- Fluid specification
- for viscous fluids
- Voltage
- 400 V, 230 V
- Flow
7.5 m³/h
(264.86 ft³/h)- Power
1.1 kW
(1.5 hp)- Fluid temperature
75 °C
(167 °F)- Length
190 mm
(7 in)- Width
446 mm
(17.56 in)- Height
245 mm
(9.65 in)
Description
The AP18HP pump is designed to transfer highly viscous fluids up to 45 cSt.
Easy integration
The mechanical seal allows a small footprint.
Excellent wear resistance
Ultra-durable carbide/carbide insert
Excellent performance
Closed centrifugal impeller coupled to a bladed diffuser.
Self-priming
Excentric suction inlet.
Improved protection
Built-in strainer.
