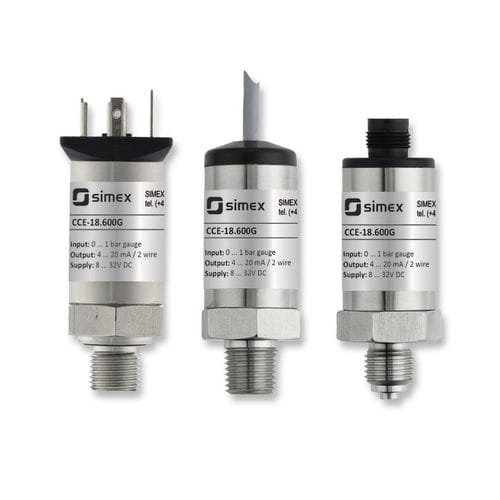

Compressed air pressure transmitter CCE-18.600G
absolutemembrane4-20 mA

compressed air pressure transmitter
compressed air pressure transmitter
Add to favorites
Compare this product

Go to the SIMEX Sp. z o.o. website for more information

Characteristics

Pressure type
absolute
Technology
membrane
Output
4-20 mA, 0-10 V, current output, voltage output, 2-wire, 3-wire
Electrical connection
M12 connector
Supply voltage
24 Vdc, 12 Vdc, 15VDC, 32VDC, 9VDC, 8VDC
Mounting
threaded
Process connection
NPT 1/4, G 1/4
Fluid
for compressed air
Material
stainless steel
Protection level
IP65, IP67
Applications
for the petrochemical industry, process, for the aeronautical industry, automotive, for test and process engineering, for agricultural applications, for the food industry, for OEM, for water treatment, for building automation, for marine applications, for the oil and gas industry, for compressors, for pneumatic applications, for pharmaceutical applications, for nuclear power plants, for injection molding machines, for boiler, for the plastics industry, for the energy sector, for hydraulic applications, for engines, for the chemical industry
Other characteristics
compact, precision
Pressure range

Max.: 6 bar
(87.02 psi)

Min.: -1 bar
(-14.5 psi)

Precision

0.5 %, 1 %

Process temperature

Max.: 85 °C
(185 °F)

Min.: -25 °C
(-13 °F)

Description

CCE-18.600G pressure transmitters have been added as a source for mechanical engineering and compressed air network solutions. Used in non-insulated silicon sensors, the application of the measurement at the level of 0.5% compliant with the IEC 60770 standard. The nominal pressure range for the CCE-18.600G is 100 mbar ... 6 bar. Specification Measurement range - 0...100 mbar up to 0...6 bar -1...0 bar Output type - 4...20 mA, 2-wire 0...10V, 3-wire Process connection - G 1/4 1/4 NPT Electrical connection - connector M12x1 cable outlet with PVC cable ISO 4400 Diaphragm - stainless steel 316L Power supply - 8...32V DC 14...30V DC Accuracy - ±0,5% ±1% Operating temperature - -25...+85°C Medium temperature - -25...+125°C Protection class - IP 65 IP 67 Case material - stainless steel
