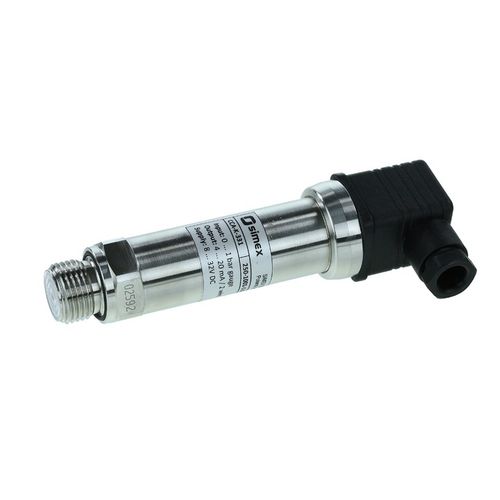

Absolute pressure transmitter CCA-K-331
ceramic4-20 mA0-10 V

absolute pressure transmitter
absolute pressure transmitter
Add to favorites
Compare this product

Go to the SIMEX Sp. z o.o. website for more information

Characteristics

Pressure type
absolute
Technology
ceramic
Output
4-20 mA, 0-10 V, 0-5 V, current output, voltage output, 1-6 V, 2-wire, 3-wire
Electrical connection
M12 connector
Supply voltage
24 Vdc, 12 Vdc, 15VDC, 32VDC, 9VDC, 8VDC
Mounting
threaded
Process connection
NPT 1/4, NPT 1/2, G 1/2, G 1/4, M20 x 1,5
Fluid
for oxygen, for aggressive media, for corrosive fluids
Material
stainless steel
Protection level
IP65, IP67, IP68
Applications
for hydraulic applications, process, for the food industry, for test and process engineering, for OEM, for the petrochemical industry, for compressors, for injection molding machines, for water treatment, for agricultural applications, for building automation, for the energy sector, for marine applications, for pharmaceutical applications, for the oil and gas industry, for engines, automotive, for nuclear power plants, for the aeronautical industry, for the plastics industry, for boiler
Other characteristics
compact, precision, low pressure
Pressure range

Min.: -1 bar
(-14.5 psi)

Max.: 600 bar
(8,702.26 psi)

Precision

0.5 %

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)

Description

The industrial pressure transmitter CCA-K-331 with ceramic sensor has been especially designed for pasty, polluted or aggressive media and for oxygen applications at low pressure range. As with all industrial pressure transmitters made by Simex, you may choose between various electrical and mechanical connections also on CCA-K-331. Specification Measurement range - 0...400 mbar up to 0...600 bar -1...0 bar Output type - 4...20 mA, 2-wire 0...20 mA, 3-wire 0...5V, 3-wire 0...10V, 3-wire 0...1V 1...6V Electrical connection - connector M12x1 Binder 723 cable outlet ISO 4400 compact field housing stainless steel Process connection - G 1/2 G 1/4 1/2 NPT 1/4 NPT M20x1,5 Diaphragm - ceramics Al2O3 (99.9 %) Power supply - 8...32V DC 14...30V DC 10...28V DC 14…28V DC Accuracy - ±0,5% Operating temperature - -40...+85°C Medium temperature - -40...+125°C Protection class - IP 65 IP 67 IP 68 Case material - stainless steel
