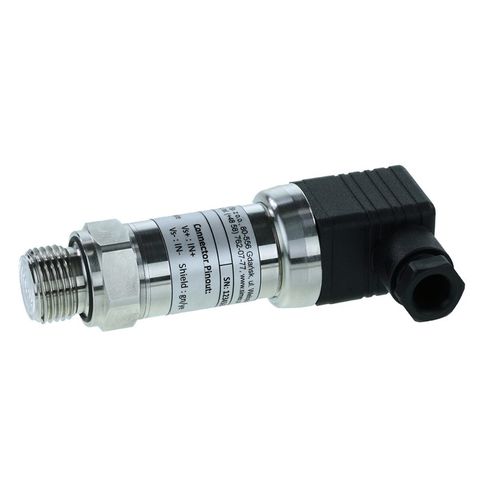

Absolute pressure transmitter CCA-P-331
membrane4-20 mA0-10 V

Absolute pressure transmitter - CCA-P-331 - SIMEX Sp. z o.o. - membrane / 4-20 mA / 0-10 V
Absolute pressure transmitter - CCA-P-331 - SIMEX Sp. z o.o. - membrane / 4-20 mA / 0-10 V
Add to favorites
Compare this product
Go to the SIMEX Sp. z o.o. website for more information

Characteristics

Pressure type
absolute
Technology
membrane
Output
4-20 mA, 0-10 V, 0-5 V, current output, voltage output, 1-5 V, 1-6 V, 2-wire, 3-wire
Electrical connection
M12 connector
Supply voltage
DC
Mounting
threaded
Process connection
G 1/4, G 1/2, NPT 1/4, NPT 1/2, M20 x 1,5
Fluid
for liquids
Material
stainless steel
Protection level
IP65, IP67, IP68
Applications
for HVAC systems, process, for the food industry, for the petrochemical industry, for injection molding machines, for OEM, for water treatment, for boiler, for building automation, for the plastics industry, for agricultural applications, for compressors, for pharmaceutical applications, for marine applications, for the aeronautical industry, for the energy sector, for nuclear power plants, automotive, for hydraulic applications, for engines, for the chemical industry, for the oil and gas industry, for test and process engineering
Other characteristics
compact, precision
Pressure range

Max.: 40 bar
(580.15 psi)

Min.: -1 bar
(-14.5 psi)

Precision

0.1 %, 0.2 %, 0.25 %, 0.35 %, 0.5 %

Process temperature

Max.: 85 °C
(185 °F)

Min.: -40 °C
(-40 °F)

Description

excellent thermal behavior excellent long term stability areas of application: mechanical and plant engineering, energy industry, HVAC, environmental industry The pressure transmitter CCA-P-331 can be used in all industrial areas when the medium is compatible with stainless steel 1.4404 (316 L) or 1.4435 (316 L). Additional are different elastomer seals as well as a helium tested welded version available. The modulare concept of the device allows to combine different stainless steel sensors and electronic modules with a variety of electrical and mechanical versions.Thus a diversity of variations is created, meeting almost all requirements in industrial applications. Specification Electrical connection - Binder 723 cable outlet ISO 4400 compact field housing stainless steel Medium temperature - -40...+125°C
