Absolute pressure transmitter CCE-26.600G
ceramic4-20 mA0-10 V

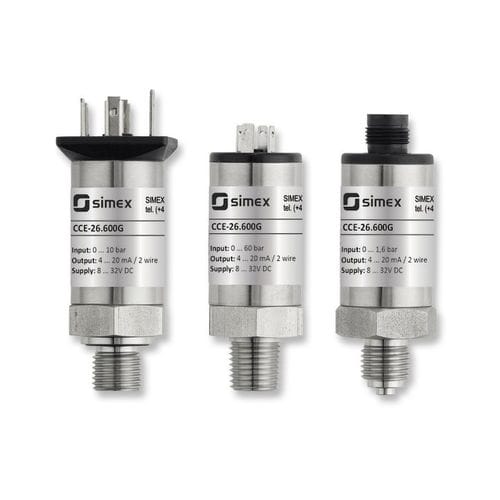

Absolute pressure transmitter - CCE-26.600G - SIMEX Sp. z o.o. - ceramic / 4-20 mA / 0-10 V
Absolute pressure transmitter - CCE-26.600G - SIMEX Sp. z o.o. - ceramic / 4-20 mA / 0-10 V
Add to favorites
Compare this product
Go to the SIMEX Sp. z o.o. website for more information

Characteristics

Pressure type
absolute
Technology
ceramic
Output
4-20 mA, 0-10 V, 0-5 V, ratiometric, current output, voltage output, 1-5 V, 2-wire, 3-wire
Electrical connection
M12 connector
Supply voltage
24VDC, 12VDC, 32VDC, 15VDC, 5VDC, 8VDC, 9VDC, 4.5VDC, 3VDC
Mounting
threaded
Process connection
G 1/4, G 1/2, NPT 1/4, M20 x 1,5, G 1/8
Fluid
for liquids
Material
stainless steel
Protection level
IP65, IP67
Applications
process, for the food industry, for the petrochemical industry, for agricultural applications, for injection molding machines, for OEM, for HVAC systems, for water treatment, for the aeronautical industry, for the plastics industry, for nuclear power plants, for building automation, for boiler, for engines, for pharmaceutical applications, for marine applications, automotive, for hydraulic applications, for the energy sector, for the chemical industry, for test and process engineering, for the oil and gas industry, for compressors
Other characteristics
compact, precision
Pressure range

Max.: 400 bar
(5,801.51 psi)

Min.: -1 bar
(-14.5 psi)

Precision

0.5 %, 1 %

Process temperature

Max.: 85 °C
(185 °F)

Min.: -25 °C
(-13 °F)

Description

CCE-26.600G pressure transmitters can be used in any industrial solutions. Equipped with a ceramic sensor, they guarantee a measurement accuracy of 0.5% in accordance with the IEC 60770 standard. The nominal pressure range for the CCE-26.600G is 1...400 bar. Specification Electrical connection - cable outlet with PVC cable ISO 4400 Medium temperature - -25...+125°C
