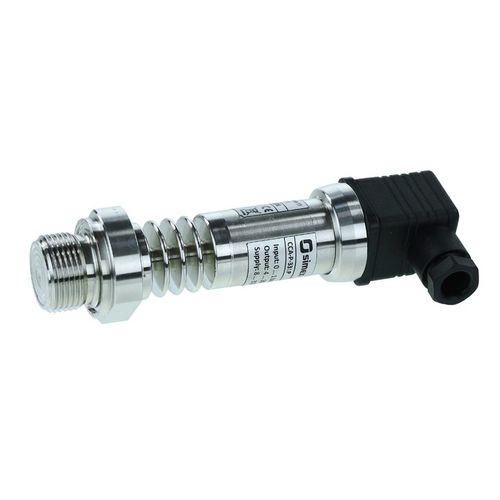

Absolute pressure transmitter CCA-P-331P
membrane4-20 mA0-10 V

Absolute pressure transmitter - CCA-P-331P - SIMEX Sp. z o.o. - membrane / 4-20 mA / 0-10 V
Absolute pressure transmitter - CCA-P-331P - SIMEX Sp. z o.o. - membrane / 4-20 mA / 0-10 V
Add to favorites
Compare this product
Go to the SIMEX Sp. z o.o. website for more information

Characteristics

Pressure type
absolute
Technology
membrane
Output
4-20 mA, 0-10 V, 0-5 V, current output, voltage output, 2-wire
Electrical connection
M12 connector
Supply voltage
32VDC, 8VDC
Mounting
threaded, flange
Process connection
G 1/2, G 3/4
Fluid
for liquids
Material
stainless steel
Protection level
IP65, IP67, IP68
Applications
process, for the food industry, for the petrochemical industry, for engines, for agricultural applications, for OEM, for water treatment, for building automation, for boiler, for nuclear power plants, for pharmaceutical applications, automotive, for the plastics industry, for test and process engineering, for injection molding machines, for marine applications, for the energy sector, for compressors, for hydraulic applications, for the aeronautical industry, for medical applications, for the chemical industry, for the oil and gas industry
Other characteristics
compact, precision, hygienic
Pressure range

Min.: -1 bar
(-14.5 psi)

Max.: 40 bar
(580.15 psi)

Precision

0.25 %, 0.35 %, 0.5 %

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)

Description

The pressure transmitter CCA-P-331P was designed for use in the food and pharmaceutical industry. The compact design with hygienic process connections makes it possible to achieve an outstanding performance in terms of accuracy, temperature behavior and long term stability. The modular construction concept allows a combination of various process connections with different filling fluids and a cooling element. Several electrical connections complete the profile of CCA-P-331P. This transmitter fulfills nearly all requirements in hygienic industrial processes. Specification Process connection - clamp dairy pipe Varivent® Electrical connection - Binder 723 cable outlet ISO 4400 Medium temperature - -40...+125°C -10...+125°C
