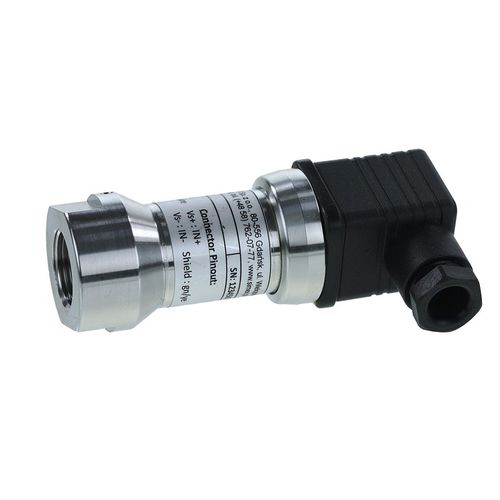

Precision pressure transmitter CCA-P-331i
absolutemembrane4-20 mA

Precision pressure transmitter - CCA-P-331i - SIMEX Sp. z o.o. - absolute / membrane / 4-20 mA
Precision pressure transmitter - CCA-P-331i - SIMEX Sp. z o.o. - absolute / membrane / 4-20 mA
Add to favorites
Compare this product
Go to the SIMEX Sp. z o.o. website for more information

Characteristics

Pressure type
absolute
Technology
membrane
Output
4-20 mA, 0-10 V, current output, voltage output, 2-wire, 3-wire
Electrical connection
M12 connector
Supply voltage
24VDC, 12VDC, 32VDC, 15VDC, 36VDC
Mounting
threaded
Process connection
G 1/4, G 1/2, NPT 1/4, NPT 1/2
Fluid
for liquids
Material
stainless steel
Protection level
IP65, IP67
Applications
for building automation, process, for the food industry, for the petrochemical industry, for injection molding machines, for OEM, for water treatment, for pharmaceutical applications, for the aeronautical industry, for the energy sector, for marine applications, for the plastics industry, for hydraulic applications, automotive, for the oil and gas industry, for compressors, for agricultural applications, for the chemical industry, for test and process engineering, for engines, for boiler, for nuclear power plants
Other characteristics
compact, precision
Pressure range

Max.: 60 bar
(870.23 psi)

Min.: -0.4 bar
(-5.8 psi)

Precision

0.1 %

Process temperature

Max.: 85 °C
(185 °F)

Min.: -25 °C
(-13 °F)

Description

The precision pressure transmitter CCA-P-331i demonstrate the further development of our industrial pressure transmit-ters. The signal processing of sensor signal is done by digital electronics with 16-bit analog digital converter. Consequently it is possible to conduct an active compensation and the transmitters with excellent maesurements and exeptionally attractive price to offer on the market. Specification Electrical connection - Binder 723 cable outlet ISO 4400 Medium temperature - -25...+125°C
