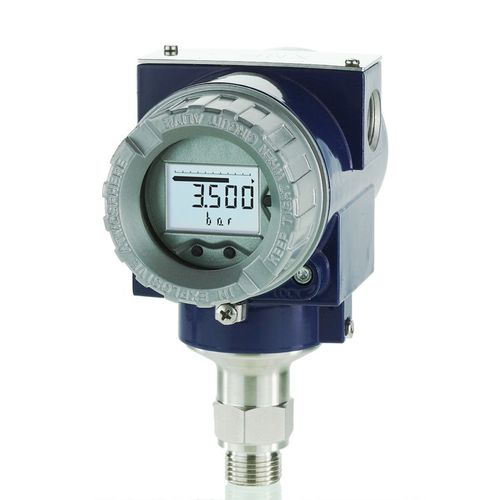

Process pressure transmitter CCA-Xi

absolutemembrane4-20 mA

The process pressure transmitter CCA-Xi has been especially designed for the process industry and measures vacuum, gauge and absolute pressure ranges of gases, steam, fluids and dust up to 600 bar. Different process connections such as threads and flanges with an internal or flush welded diaphragm are available and can be combined with a cooling element for media temperatures up to 300°C. The transmitter is as a standard equipped with HART®-communication; the customer can choose between a two chamber aluminum die cast case or a stainless field housing. Specification Measurement range - 0...400 mbar up to 0...600 bar -0.4...0.4 bar up to -1...10 bar Output type - 4...20 mA, 2-wire HART Process connection - G 1/2 G 1 1/2 NPT flange G 1/4 G 3/4 G1 1/2 G 2 1/8 NPT clamp dairy pipe Varivent® Diaphragm - stainless steel 316L Power supply - 12...28V DC Display - LCD, 5 x 8 mm LCD, 8 x 5 mm Accuracy - ±0,1% Transmission protocol - HART® Operating temperature - -20...+70°C -40...+80°C Medium temperature - -40...+125°C Protection class - IP 67 Case material - stainless steel aluminium
