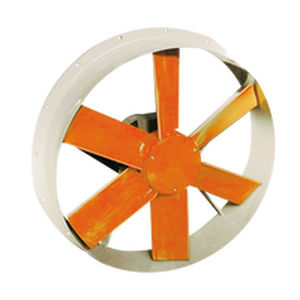

Wall-mounted fan HCH seriesaxialventilation230VAC
Add to favorites
Compare this product
Characteristics
- Installation
- wall-mounted
- Configuration
- axial
- Function
- ventilation
- Supply voltage
- 230VAC, 400 VAC
- Drive mechanism
- with asynchronous motor
- Other characteristics
- ATEX, anti-corrosion, reversible, IP55, IP54
- Air flow
Max.: 71,850 m³/h
(2,537,358.804 ft³/h)Min.: 3,100 m³/h
(109,475.467 ft³/h)- Rotational speed
Max.: 2,830 rpm
(17,781 rad.min-1)Min.: 900 rpm
(5,655 rad.min-1)- Noise level
Max.: 95 dB
Min.: 55 dB
Description
Very robust wall mounted axial fans
Wall mounted axial fans. PL version fitted with a plastic impeller and AL version with an aluminium impeller.
Fan:
• Airflow direction from motor to impeller.
• PL version impellers in fibreglass reinforced polyamide-6 and AL version in cast aluminium. Models 40-2T only in AL version.
• Support ring in sheet steel.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Class F motors with ball bearings. IP55 protection. Except single-phase models from size 45 to size 56, with IP54 protection. 1 or 2 speeds depending on model.
• Single-phase 230 V 50 Hz and three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +50 ºC.
Finish:
• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
On request:
• Airflow direction from impeller to motor.
• 100% reversible impellers.
• Special windings for different voltages.
• ATEX certified Category 2.
