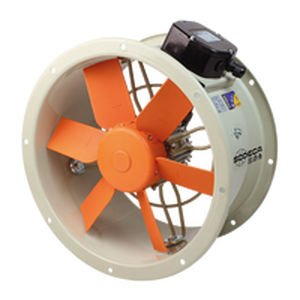

Axial fan HEPT serieswall-mountedextractionanti-corrosion
Add to favorites
Compare this product
Characteristics
- Type
- wall-mounted
- Configuration
- axial
- Function
- extraction, anti-corrosion
- Supply voltage
- 230VAC, 220VAC, 240VAC, 380VAC
- Drive mechanism
- with asynchronous motor
- Material
- fiberglass
- Air flow
Max.: 18,700 m³/h
(660,384.268 ft³/h)Min.: 2,400 m³/h
(84,755.2 ft³/h)- Rotational speed
Max.: 2,790 rpm
(17,530 rad.min-1)Min.: 905 rpm
(5,686 rad.min-1)- Noise level
Max.: 82 dB
Min.: 54 dB
Description
Tubular axial fans with reinforced plastic rotor made of fibreglass.
Fan:
• Airflow direction from motor to impeller.
• Fibreglass reinforced polyamide-6 impeller.
• Tubular casing in sheet steel.
• External connection box. IP65 protection.
Motor:
• Class F motors with ball bearings and IP65 protection.
• Single-phase 220-240 V 50 Hz and three-phase 220-240/380-415 V 50 Hz.
• Working temperature: -25ºC +60 ºC for 4-6-8 pole motors and -25ºC +45ºC for 2-pole motors.
Finish:
• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
On request:
• Motor, impeller and grille assembly (version F).
• Motor, impeller assembly (version G).
• Airflow direction from impeller to motor.
• Special windings for different voltages.
