Axial fan THT/IE5
extraction230VAC400VAC

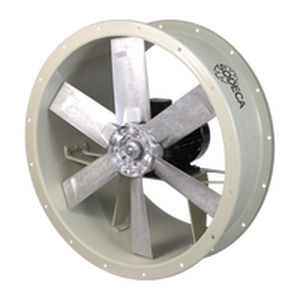

Axial fan - THT/IE5 - SODECA - extraction / 230VAC / 400VAC
Axial fan - THT/IE5 - SODECA - extraction / 230VAC / 400VAC
Add to favorites
Compare this product

Characteristics

Configuration
axial
Function
extraction
Supply voltage
230VAC, 400VAC, 690 V
Material
steel, cast aluminum
Applications
industrial
Other characteristics
IP55

Description

Summary
Tubular axial fans with short casing for operation in fire-risk zones and ultra-high efficiency IE5 F400 motor.

Fan
  • Tubular casing in sheet steel.
  • Variable angle impeller made of cast aluminium.
  • Approved in accordance with standard EN 12101-3, certification no.: 2797 CPR 840443 (F400).
  • Airflow direction from motor to impeller (standard).

Motor
  • Class H motors for continuous use (S1) and emergency use (S2).
  • Ball bearings.
  • IP55 protection.
  • Single speed.
  • IE5 efficiency motors.
  • Three-phase 230/400 V 50 Hz (up to 3 kW) and 400/690 V 50 Hz (powers greater than 3 kW).
  • Maximum air temperature: Service S1 -25 °C to +40 °C continuously (also suitable for hot climates up to 50 °C). Service S2 400 °C/2h.

Finish
  • Anti-corrosive finish in polyester resin, polymerised at 190 °C, after degreasing with phosphate-free nanotechnology treatment.

Available versions

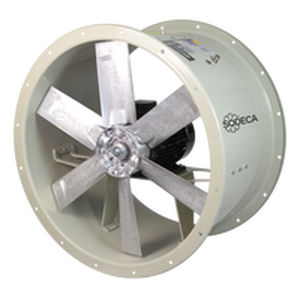

  • THT/CL/IE5: Tubular axial fans with long casing equipped with inspection hatch.

On request
  • Airflow direction from impeller to motor.
  • 100% reversible impellers.
  • Vertical axis configuration on models that do not offer it in standard version.

Caractéristiques / spécifications techniques
  • Model: THT/IE5
  • Type: Tubular axial fan with short casing
  • Fire rating: F400 (400 °C/2h), EN 12101-3 (cert. no. 2797 CPR 840443)
  • Casing material: Sheet steel
  • Impeller: Cast aluminium, variable angle
  • Motor class: H (S1 continuous, S2 emergency)
  • Bearings: Ball bearings
  • Protection degree: IP55
  • Speed: Single speed
  • Efficiency: IE5
  • Voltage: 3-phase 230/400 V 50 Hz (≤3 kW); 400/690 V 50 Hz (>3 kW)
  • Operating temperature S1: -25 °C to +40 °C (suitable up to 50 °C in hot climates)
  • Emergency temperature S2: 400 °C for 2 hours
  • Finish: Polyester resin coating polymerised at 190 °C after phosphate-free nanotechnology degreasing
