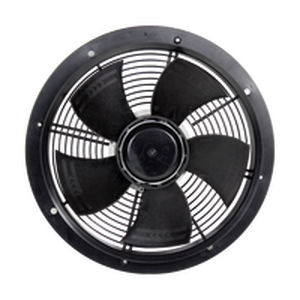

Wall-mounted fan HRE/EC seriesaxialventilation230VAC
Add to favorites
Compare this product
Characteristics
- Installation
- wall-mounted
- Configuration
- axial
- Function
- ventilation
- Supply voltage
- 230VAC, 400 VAC
- Drive mechanism
- with asynchronous motor
- Other characteristics
- anti-corrosion, energy-efficient, IP44
- Air flow
1,540 m³/h, 2,590 m³/h, 3,340 m³/h
(54,384.587 ft³/h, 91,464.987 ft³/h, 117,950.987 ft³/h)- Rotational speed
1,838 rpm, 2,263 rpm, 2,915 rpm
(11,548 rad.min-1, 14,219 rad.min-1, 18,315 rad.min-1)- Noise level
63 dB, 66 dB, 68 dB
Description
Circular axial fans with EC Technology outer rotor motor
Circular axial fans with EC Technology outer rotor motor, specially designed for high energy efficiency.
Fan:
• Support ring in sheet steel.
• Protection grid against contacts according to UNE-EN ISO 12499.
• Plastic impeller (25) and sheet steel impeller (sizes 30 and 35).
• Grille impeller airflow direction.
Motor:
• High efficiency EC Technology motors, outer rotor adjustable via 0-10 V signal. IP44 protection.
• Single-phase 230 V 50/60 Hz and three-phase 400 V 50/60 Hz.
• Working temperature: -25 ºC +60 ºC.
Finish:
• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
