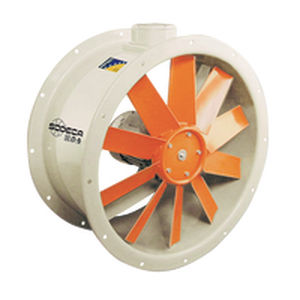

Wall-mounted fan HCT series

axialventilation230VAC

Extremely robust tubular axial fans Tubular wall mounted fans. PL version fitted with a plastic impeller and AL version with an aluminium impeller. Fan: • Airflow direction from motor to impeller. • PL version impellers in fibreglass reinforced polyamide-6 and AL version in cast aluminium. Models 40-2T and 45-2T only in AL version. • Tubular casing in sheet steel with external terminal box. Motor: • Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole. • Class F motors with ball bearings. IP55 protection. Except single-phase models from size 45 to size 56, with IP54 protection. 1 or 2 speeds depending on model. • Single-phase 230 V 50 Hz and three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW). • Working temperature: -25 ºC +50 ºC. Finish: • Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment. On request: • Airflow direction from impeller to motor. • 100% reversible impellers. • Special windings for different voltages. • ATEX certified Category 2.
