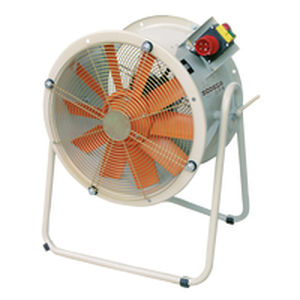

Floor-standing fan HTM series

axialventilation230VAC

Tubular portable axial fans Mobile fans with the possibility of directing the air flow. Fan: • Tubular casing in sheet steel. • Fibreglass reinforced polyamide-6 impeller. • Protection grid against contacts according to the UNE-EN ISO 12499 standard, on both sides. • Manually resettable connection box with on/off switch to prevent accidental start-up (EN ISO 12100) • Airflow direction from motor to impeller. • The fan switch has a CETAC P17 type plug attached. For three-phase motor: 3P + T 16A. For single phase motor: 2P + T 16A. Motor: • Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole. • Class F motors with ball bearings and IP55 protection. Except single-phase models from size 35 to size 56, with IP54 protection. • Single-phase 230 V 50 Hz and three-phase 230/400 V 50 Hz. • Working temperature: -25 ºC +50 ºC. Finish: • Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment. On request: • Airflow direction from impeller to motor. • 100% reversible impellers. • Special windings for different voltages. • ATEX certified Category 2.
