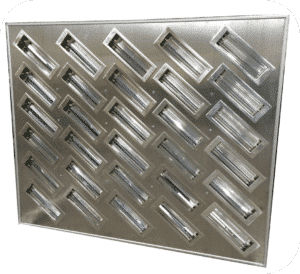

Electric power radiant heater PAINT’IRC

electricsingle-phaseAC

Product overview
The PAINT’IRC short-wave infrared module is designed to deliver efficient, homogeneous short-wave IR radiation for drying and baking paints and coatings. It operates at low surface power densities adapted to paint processes and is suitable for fragile parts and mixed substrates such as steel and plastics. Modules can be combined to create larger panels and are available in 1-, 2- and 3-tube configurations covering total powers from 1,000 to 6,000 W.

Technical specifications (general)

• Multi-faceted treated aluminium reflector
• Minimum lamp layout: 150 x 425 mm
• Aluminium profile frame, H = 195 mm
• Front protection: 1 front grid
• Plug-in power supply
• Forced-air cooling for tube and reflector
• Modules combinable in groups of 2 or 3 or configurable as custom panels

PAINT’IRC Module - 1 tube

• 490 x 200 x 200 mm — 1000 W — 230/240 V — SPC1.0PM049020D
• 490 x 200 x 200 mm — 1500 W — 230/240 V — SPC1.5PM049020D
• 490 x 200 x 200 mm — 2000 W — 230/240 V — SPC2.0PM049020D

PAINT’IRC Module - 2 tubes

• 490 x 400 x 200 mm — 2 x 1000 W — 230/240 V — SPC2.0PM049040D
• 490 x 400 x 200 mm — 2 x 1500 W — 230/240 V — SPC3.0PM049040D
• 490 x 400 x 200 mm — 2 x 2000 W — 230/240 V — SPC4.0PM049040D
• 930 x 200 x 200 mm — 2 x 1000 W — 230/240 V — SPC2.0PM093040D
• 930 x 200 x 200 mm — 2 x 1500 W — 230/240 V — SPC3.0PM093040D
• 930 x 200 x 200 mm — 2 x 2000 W — 230/240 V — SPC4.0PM093040D

PAINT’IRC Module - 3 tubes

• 530 x 490 x 200 mm — 3 x 1000 W — 230/240 V — SPC3.0PM049053D
• 530 x 490 x 200 mm — 3 x 1500 W — 230/240 V — SPC4.5PM049053D
• 530 x 490 x 200 mm — 3 x 2000 W — 230/240 V — SPC6.0PM049053D

Technical characteristics

• Reflector: multi-faceted treated aluminium for optimized radiation distribution
• Standard lamp layout: 150 x 425 mm (minimum)
• Frame: aluminium profiles (H = 195 mm)
• Front protection: removable grid
• Power supply: plug-in unit for simplified installation
• Cooling: fans for tube and reflector thermal management
• Available configurations and references: see module lists above (SPC1.0PM049020D … SPC6.0PM049053D)
