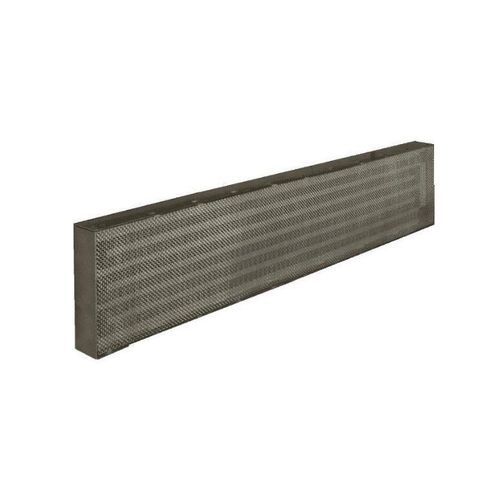

Single-phase radiant heater HP' AGRO

three-phaseACelectric power

Product overview
Medium-wave infrared heater (≈2.6 µm) designed for food-processing and humid industrial environments. Operates at ambient temperatures up to 100°C. Requires double-insulated installation; insulation and frame materials are selected for food-industry compatibility.

Key features

• Compact units (length < 1.5 m)
• Very low thermal inertia (≈5 seconds)
• High radiation efficiency (> 90%)
• Power density: medium to high, up to 60 kW/m²

Integrated components

• Single heating drawer with low-inertia corrugated ribbons mounted on a non-fibrous food-grade insulator
• Stainless steel frame with fixing points insulated for double-insulation assembly
• Stainless steel electrical connections on insulators
• Available with or without front grill

Standard dimensions (examples)

• 640 x 172 mm | 3500 W | 115 V | 31 A | MF3.5FM06417
• 780 x 172 mm | 4000 W | 115 V | 31 A | MF4.0FM07817
• 1000 x 172 mm | 6000 W | 200 V | 35 A | MF6.0AM10017
• 1220 x 172 mm | 7000 W | 230 V | 33 A | MF7.0PM12217
• 1220 x 172 mm | 7000 W | 430 V | 19 A | MF7.0VM12217

Notes
Other lengths, power ratings and voltages available on request. Suitable for humid environments when installed according to double-insulation requirements.

Technical specifications

• Wavelength: medium-wave, ≈2.6 µm
• Maximum ambient temperature: 100°C
• Designed for high-humidity environments (double-insulated installation required)
• Insulation and frame materials suitable for the food industry (non-fibrous insulator, stainless steel frame)
• Low-inertia heating elements (≈5 seconds)
• Radiation efficiency: > 90%
• Power density: up to 60 kW/m²
• Stainless steel connections and insulated fixing points
• Available with or without front grill
• Standard size/power examples listed above
