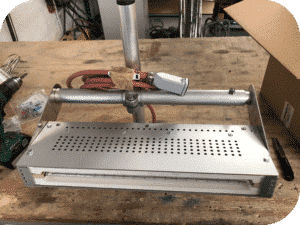

Electric radiant heater SM’IRC

ACsingle-phasefor heating

Overview

• Heating focused on a small area
• Reactivation of adhesive, heating of wire or profile while running, etc.
• High power density: 60 to 200 kW/m²

Technical specifications
Short-wave infrared heater with :

• 1 aluminum reflector, 22 mm width
• 1 stainless steel frame with one air supply port for cooling
• Internal wiring routed in high-temperature sheaths
• 1 short-wave infrared tube, front-panel mounting

Cooling system
The set for 3 to 6 SM’IRC:

• 1 motorized centrifugal fan
• 1 filter installed on the suction
• 1 air box 350×250×200 equipped with 3 to 6 Ø25 external outlets
• 3 m of spiral hose per outlet (length to be cut if necessary)
• 2 clamps per hose
• Left version: fan on the left when facing the door
• Right version: fan on the right when facing the door

Dimensions and references
Reflector dim. | Power | Voltage | Reference
360 x 22 mm | 2000 W | 230 V | SPC2.0UM360I
500 x 22 mm | 2000 W | 230 V | SPC2.0VM500I

Characteristics / technical specifications

• Product name: SM’IRC
• Technology: Short-wave infrared heater
• Heating density: 60 to 200 kW/m²
• Reflector width: 22 mm; available reflector dimensions: 360 x 22 mm, 500 x 22 mm
• Tube: 1 short-wave infrared tube, front-panel mounting
• Frame: Stainless steel frame with air supply port for cooling
• Cooling: Motorized centrifugal fan, suction filter, air box 350×250×200 with 3–6 Ø25 outlets, spiral hose and clamps
• Electrical: 2000 W, 230 V
• References: SPC2.0UM360I, SPC2.0VM500I
