Cable powered radiant heater IRC cera

single-phaseelectric powerAC

Overview
Range of high power density short-wave infrared heaters delivering surface power densities from 30 to 500 kW/m². Treatable surfaces span from a few cm² up to several m². Typical applications include paper drying, coating drying and polymerization, and heating of thermoplastic composites.

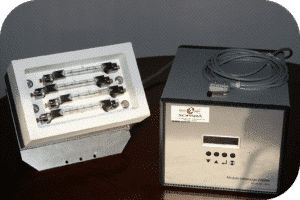

Standard heater IRC Flash
Short-wave infrared module, 153 x 240 mm, incorporating 2 to 4 lamps for total module power between 600 W and 2400 W. Module operates on 230 V and features a plug-in socket.

Table - Available configurations
Power | Voltage | Designation | Reference
600 W | 230 V | 2 lamps of 300 W | EC600PM240
1200 W | 230 V | 4 lamps of 300 W | EC1.2PM240
2400 W | 230 V | 4 lamps of 600 W | EC2.4PM240

Type of use

• Ink drying
• Pad printing
• Resin polymerization

Options
Optional electrical management box with integrated safety devices and control systems, wired and plugged on the heater side.

Characteristics / technical specifications

• Power density range: 30 to 500 kW/m²
• Treatable surface: from a few cm² to several m²
• Standard module dimensions: 153 x 240 mm
• Module lamps: 2 to 4 lamps per module
• Module total power: 600 W to 2400 W (depending on configuration)
• Operating voltage: 230 V
• Connection: plug-in socket
• Available designations/references: EC600PM240, EC1.2PM240, EC2.4PM240
• Primary applications: paper drying, coating polymerization and drying, heating of thermoplastic composites, ink drying, pad printing, resin polymerization
• Optional electrical management box with safety devices and control systems
