Electric radiant heater IND'irc
single-phaseACcable powered

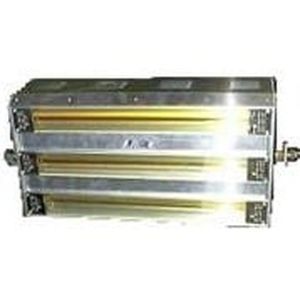

Electric radiant heater - IND'irc - SOPARA - single-phase / AC / cable powered
Electric radiant heater - IND'irc - SOPARA - single-phase / AC / cable powered
Electric radiant heater - IND'irc - SOPARA - single-phase / AC / cable powered - image - 2
Add to favorites
Compare this product

Characteristics

Power source
electric, single-phase, AC, cable powered, three-phase
Applications
industrial, curing, heat treatment, for heating, drying
Other characteristics
tube, shortwave, with ventilator
Power

Max.: 9 kW
(12.24 hp)

Min.: 1 kW
(1.36 hp)

Description

Product overview
  • Parabolic infrared heating module for heating of moving products or localized surface heating in industrial processes.
  • Short-wave infrared emitter with medium power density: 30 to 100 kW/m².


Technical specifications
  • Emitter: 1 to 3 short-wave infrared tubes with dedicated aluminum parabolic reflector.
  • Reflector width: 55 mm.
  • Aluminum frame with mounting brackets for integration into production lines.
  • Power supply via Harting plug or fixed cable; tube and reflector cooled by an integrated fan.
  • Optional protective glass available to protect the emitter from dust or spray.


Parabolic Module - 1 tube (table)
  • EC1.0UM360 — 370 x 85 x 150 mm; 1000 W; 230/240 V.
  • EC2.0UM360L — 370 x 85 x 150 mm; 2000 W; 230/240 V.
  • EC2.0VM360L — 370 x 85 x 150 mm; 2000 W; 400 V.
  • EC2.0VM500L — 510 x 85 x 150 mm; 2000 W; 400 V.
  • EC3.0VM800L — 800 x 85 x 150 mm; 3000 W; 400 V.


Parabolic Module - 2 tubes (table)
  • SPC1.0UM024016A — 240 x 165 x 150 mm; 2 x 500 W; 240 V.
  • SPC2.0UM037016A — 370 x 165 x 150 mm; 2 x 1000 W; 240 V.
  • SPC4.0UM037016A — 370 x 165 x 150 mm; 2 x 2000 W; 240 V.
  • SPC4.0VM037016A — 370 x 165 x 150 mm; 2 x 2000 W; 400 V.
  • SPC4.0VM051016A — 510 x 165 x 150 mm; 2 x 2000 W; 400 V.
  • SPC6.0VM080016A — 800 x 165 x 150 mm; 2 x 3000 W; 400 V.


Parabolic Module - 3 tubes (table)
  • SPC3.0UM037025A — 370 x 250 x 150 mm; 3 x 1000 W; 230/240 V.
  • SPC6.0UM037025A — 370 x 250 x 150 mm; 3 x 2000 W; 230/240 V.
  • SPC6.0VM037025A — 370 x 250 x 150 mm; 3 x 2000 W; 400 V.
  • SPC6.0VM051025A — 510 x 250 x 150 mm; 3 x 2000 W; 400 V.
  • SPC9.0VM080025A — 800 x 250 x 150 mm; 3 x 3000 W; 400 V.


Benefits
  • Instant, direct and fast surface heating suitable for drying, curing and thermal treatment on production lines.
  • High power density ensures very short processing times and uniform heating.
  • Precise control and effective cooling for repeatable industrial operation.
  • Compact aluminum frame and multiple mounting options for easy integration.
  • Optional protective glass increases emitter lifetime in harsh environments.
