Ceramic radiant panel LR series

electricthree-phasefor baking ovens

Product overview
Designed for heating undercarriage components in hot air ovens up to 240°C. Stainless steel construction compatible with food-processing trays and industrial environments. Modular heated floor units for integration into oven undercarriages.

Key features

• Thin stainless steel structure for compact installation
• High-density ceramic insulation to limit heat loss
• Black high-temperature treated cover to enhance thermal diffusion and radiation
• Suitable for operation in hot air ovens at up to 240°C
• Stainless steel tray option for food processing applications

Technical specifications

• Materials: stainless steel structure and tray
• Insulation: high-density ceramic
• Surface treatment: black high-temperature coating for improved heat distribution
• Operating temperature: up to 240°C
• Power: 6000 W or 9000 W
• Voltage: 400 V (three-phase)

Available variants

• 900x400 - 6000W - 400V - LR6.0VM90040
• 900x400 - 9000W - 400V - LR9.0AM90040
• 1200x550 - 6000W - 400V - LR6.0VM12055
• 1200x550 - 9000W - 400V - LR9.0VM12055

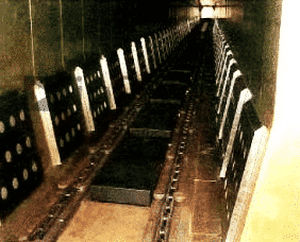

Application and installation
Designed for integration into the undercarriage of hot air ovens to provide uniform heating and process control. Recommended for industrial food-processing lines and thermal treatment applications. Install with appropriate electrical protection and grounding; perform routine checks on electrical connections and tray condition to ensure hygienic operation.
