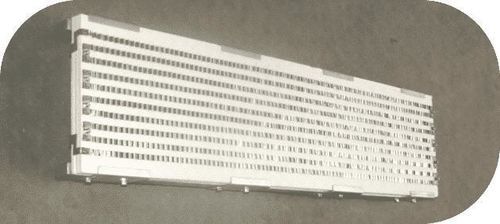

Single-phase radiant heater HP' CERA

ACelectric powerthree-phase

Product overview
Medium-wave infrared heater designed for high power density and operation in demanding ambient conditions (max. ambient temperature 300°C). Requires double-insulated mounting. Suitable for humid environments and for long continuous lengths up to 6 m.

Key features

• Medium-wave emission (2.6 μm)
• Very low thermal inertia < 5 s
• High radiation efficiency > 90%
• Power density up to 70 kW/m²
• Operates in humid environments

Technical specifications
Medium-wave infrared assembly including:

• One heating drawer fitted with low-inertia corrugated ribbons (≈5 s)
• Machined ceramic guides securing the drawer
• High-temperature painted welded frame with fixing points and insulator
• Bare electrical connections fixed by insulators in a rear box; customer cable entry via cable gland
• No front grill as standard (front grill available as option)

Standard dimensions
Available in all sizes up to 6 meters long.

MWI HP CERA 230V Mono — Length x Width and Standard power available
Length x Width - Power
600x500 - Standard power available: 4.5 kW / 19 A; 6 kW / 26 A; 7 kW / 31 A; 8 kW / 35 A; 11 kW / 48 A
1000x300 - Standard power available: 4.5 kW / 19 A; 6 kW / 26 A; 7 kW / 31 A; 8 kW / 35 A; 11 kW / 48 A
1400x300 - Standard power available: 4.5 kW / 19 A; 6 kW / 26 A; 7 kW / 31 A; 8 kW / 35 A; 11 kW / 48 A
1600x300 - Standard power available: 4.5 kW / 19 A; 6 kW / 26 A; 7 kW / 31 A; 8 kW / 35 A; 11 kW / 48 A
2200x200 - Standard power available: 4.5 kW / 19 A; 6 kW / 26 A; 7 kW / 31 A; 8 kW / 35 A; 11 kW / 48 A

MWI HP CERA 230V/400V Mono — Length x Width and Standard power available
Length x Width - Power
1000x300 - Standard power available: 7.5 kW / 19 A; 9.5 kW / 24 A; 11.5 kW / 29 A; 13.5 kW / 34 A; 15.5 kW / 39 A; 20 kW / 50 A
1400x300 - Standard power available: 7.5 kW / 19 A; 9.5 kW / 24 A; 11.5 kW / 29 A; 13.5 kW / 34 A; 15.5 kW / 39 A; 20 kW / 50 A
1600x300 - Standard power available: 7.5 kW / 19 A; 9.5 kW / 24 A; 11.5 kW / 29 A; 13.5 kW / 34 A; 15.5 kW / 39 A; 20 kW / 50 A
2000x250 - Standard power available: 7.5 kW / 19 A; 9.5 kW / 24 A; 11.5 kW / 29 A; 13.5 kW / 34 A; 15.5 kW / 39 A; 20 kW / 50 A
2250x250 - Standard power available: 7.5 kW / 19 A; 9.5 kW / 24 A; 11.5 kW / 29 A; 13.5 kW / 34 A; 15.5 kW / 39 A; 20 kW / 50 A
2500x250 - Standard power available: 7.5 kW / 19 A; 9.5 kW / 24 A; 11.5 kW / 29 A; 13.5 kW / 34 A; 15.5 kW / 39 A; 20 kW / 50 A

MWI HP CERA 230V/400V Tri — Length x Width and Standard power
Length x Width - Power
1600x350 - Standard Power: 14 kW / 21 A; 17.5 kW / 26 A; 21 kW / 31 A; 24.5 kW / 36 A; 28 kW / 41 A; 35.5 kW / 50 A
2000x350 - Standard Power: 14 kW / 21 A; 17.5 kW / 26 A; 21 kW / 31 A; 24.5 kW / 36 A; 28 kW / 41 A; 35.5 kW / 50 A
2200x350 - Standard Power: 14 kW / 21 A; 17.5 kW / 26 A; 21 kW / 31 A; 24.5 kW / 36 A; 28 kW / 41 A; 35.5 kW / 50 A
2500x300 - Standard Power: 14 kW / 21 A; 17.5 kW / 26 A; 21 kW / 31 A; 24.5 kW / 36 A; 28 kW / 41 A; 35.5 kW / 50 A
2800x300 - Standard Power: 14 kW / 21 A; 17.5 kW / 26 A; 21 kW / 31 A; 24.5 kW / 36 A; 28 kW / 41 A; 35.5 kW / 50 A

Characteristics / technical specifications

• Waveband: medium-wave (2.6 μm)
• Low thermal inertia (≈5 seconds) due to corrugated ribbons
• High radiation efficiency > 90%
• Power density up to 70 kW/m²
• Maximum ambient temperature rating: 300°C
• Construction: machined ceramic guides, high-temperature painted welded frame, insulated fixing points
• Electrical connections: bare connections in insulated rear box with cable gland passage
• Available configurations: 230V Mono; 230V/400V Mono; 230V/400V Tri
• Maximum length: up to 6 meters
