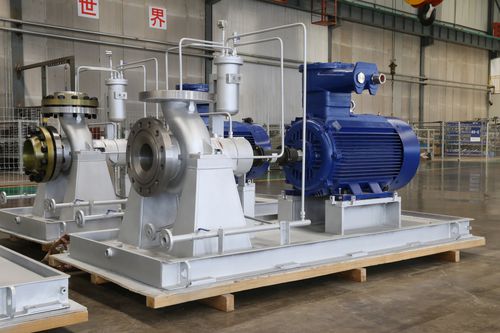

Impeller pump SOA/SOBfor chemicalswith electric motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- for chemicals
- Operation
- with electric motor
- Mobility
- stationary
- Domain
- industrial, for the chemical industry, refinery
- Applications
- discharge, suction
- Protection level
- standard
- Other characteristics
- mechanical, flange, axial, radial, seal
- Flow
2,600 m³/h
(91,818.13348 ft³/h)- Pressure
2.5 MPa, 5 MPa
- Head
300 m
(984'03" )- Fluid temperature
Max.: 450 °C
(842 °F)Min.: -8 °C
(17.6 °F)
Description
Single stage radial impeller, horizontal, radially split volute, foot or centerline mounting. Axial suction, radial discharge, suction and discharge flange pressure rating is the same. The pump body and impeller are equipped with replaceable sealing rings, which balance the axial force in the pump through the balance hole. The shaft seal and auxiliary system pipeline configuration adopts APl682 standard mechanical seal and flushing scheme.
◉ Application:
Clean or polluted, low or high temperature, chemically neutral or corrosive liquids; refinery, petrochemical, chemical industry, coal chemical, desalination, power plants, fertilizers, pulp and paper, offshore platforms and general industrial applications.
