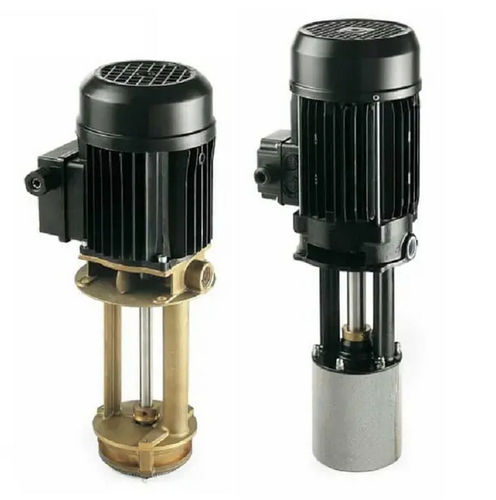

Centrifugal pump PS series

for coolantelectricsubmersible

Product overview
The PS series are electric immersed spindle pumps that combine the characteristics of submerged-suction centrifugal pumps and peripheral-impeller pumps to deliver high discharge pressure with relatively low power consumption. They are intended for applications requiring limited flow rates and high outlet pressures through nozzles or small passages, such as coolant delivery in machining centers where the fluid also helps detach and evacuate chips.

Main features

• Flow rates: 0–50 l/min
• Heads: 0–470 m
• Power: 0.37–6.3 kW
• Pump casing: brass or cast iron
• Impeller: brass
• Shaft: stainless steel Inox AISI 420
• Fasteners: stainless steel Inox A316
• Surface finish: cataphoresis painting
• Self-ventilated electric motors, frame B3; protection degree IP55; insulation class F; max ambient temperature 60°C

Applications
Particularly suitable for systems requiring high outlet pressure at low flow rates, for example coolant supply through lance or nozzle tips in machining operations where the fluid assists chip detachment and evacuation.

Technical specifications

• Series / model: PS series
• Flow rate range: 0–50 l/min
• Maximum head: up to 470 m
• Available motor power: from 0.37 to 6.3 kW
• Pump casing materials: brass or cast iron
• Impeller material: brass
• Shaft material: stainless steel Inox AISI 420
• Fasteners: stainless steel Inox A316
• Surface finish: cataphoresis painting
• Motor: self-ventilated, frame B3; protection degree IP55; insulation class F; maximum ambient temperature 60°C
