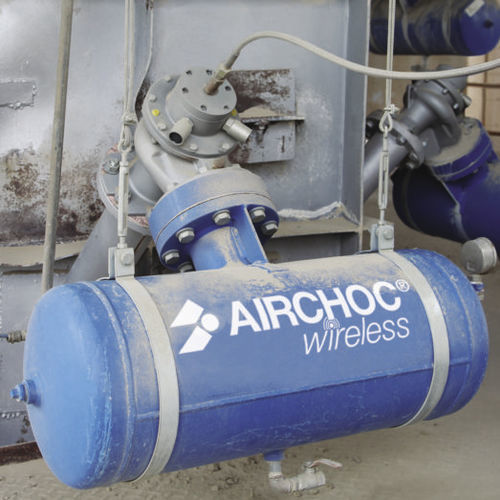

Automatic air cannon AIRCHOC® DN150

remotely controlledfor cement productionfor preheaters

Problem
Build-ups in the preheating tower at the kiln inlet, smoke box, riser duct and bypass required around 8 hours of cleaning per day using high-pressure and Cardox methods.

Objective
Eliminate concretion that disrupts the industrial process and reduces production capacity, enabling safer and more continuous kiln operation.

Solution
Installation of 85 AIRCHOC® DN150 air cannons with remote solenoid valves and 2 MACSYS control units to automate and target impact zones.

Result

• No more build-up in the treated zones
• Increased use of alternative fuels due to improved flow and reduced risk of blockages
• Rapid return on investment and significantly reduced manual cleaning time

Technical characteristics / specifications

• Manufacturer: Standard Industrie
• Product family: AIRCHOC® air blasters (air cannons)
• Quantity installed: 85 units (DN150)
• Accessories: remote solenoid valves
• Additional equipment: 2 MACSYS control/management units
• Application areas: kiln inlet, smoke box, riser duct, bypass (preheating tower)
• Previous cleaning effort: ~8 hours/day using high-pressure and Cardox
• Processed material: powder (pre-clinker and cement)
• Observed benefits: elimination of build-ups, increased alternative fuel usage, reduced cleaning time, rapid ROI
• Case study publication: 21 November 2022
