Powerful air cannon AIRCHOC® AC520HFP

high-pressureautomatic

PROBLEM
– Treated material: flue gases from biomass combustion
– Boiler manufacturer: LEROUX & LOTZ
– Boiler power: 48.5 MW
– Fuel throughput: 150,000 tons/year (~ >69 m³/hour)

• Forestry pellets
• Forestry shreds
• Sawmill by-products

– Economizer manufacturer: FAVIER SETREM
– Gas temperature at the economizers: 350°C
– Energy sold: Electricity 102 GWh/year; Heat (steam) 153 GWh/year
The customer experienced clogging of the tube bundles on two economizers (eco 1.1 + eco 1.2), reducing the flue gas flow to be treated. Manual sweeping previously used was not efficient enough and incurred high maintenance costs.

SOLUTION

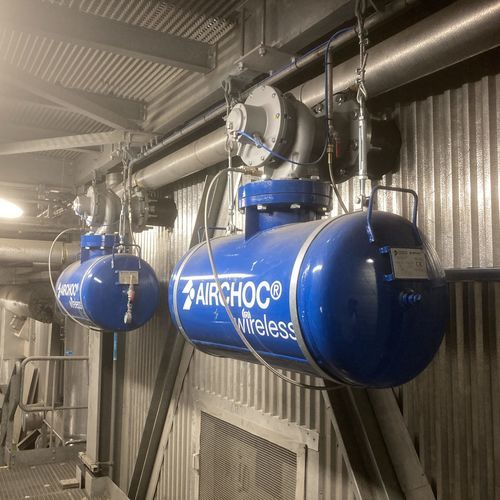

Four AIRCHOC® AC520HFP air cannons were installed on the first tube row of economizer 1. The system is fed by a 200 L tank to deliver large-volume pulses of compressed air capable of sweeping the entire tube bank. The customer configured firing at one air cannon every 15 minutes.

RESULT
The flue gas treatment circuit was cleared and the boiler can operate at normal output. Switching to this cleaning solution reduced maintenance needs and costs.

Technical specifications

• Product / Model: AIRCHOC® AC520HFP
• Number installed: 4 (economizer 1, first tube row)
• Tank capacity: 200 L
• Configured firing frequency: 1 air cannon every 15 minutes
• Boiler power: 48.5 MW (LEROUX & LOTZ)
• Fuel throughput: 150,000 tons/year (~ >69 m³/hour)
• Gas temperature at economizers: 350°C
• Economizer manufacturer: FAVIER SETREM
• Benefits: restored flue gas flow, normal boiler production, reduced maintenance costs
