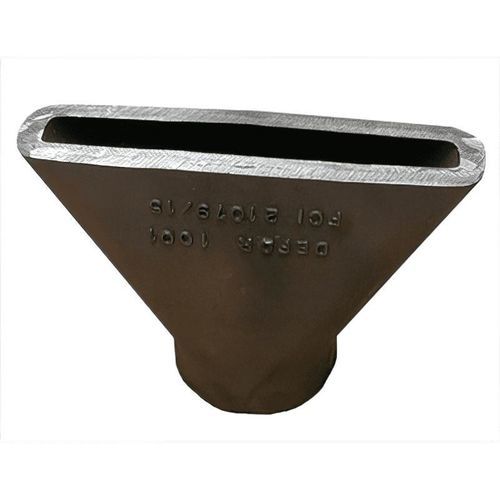

Compressed air nozzle

cleaningcoolingsteel

Overview
Nozzles direct the air flows towards sensitive clogging zones. They are mainly installed in cement plants at the heart of the process (cooler, cyclone, smoke chamber, ducts and preheating towers). Available in high- or low-temperature versions, nozzles are used to perform cleaning in preheating towers. Depending on installation, the air from the AIRCHOC® will have a precise directional impact to reach difficult areas. Available in steel or refractory stainless steel. Outlet diameters: DN100 and DN150.

Advantages

• Efficient cooling
• Flexible use for complete kilns
• Easy installation and replacement
• Targeted impact around the kiln circumference

Related services

• Site visits and technical recommendations (sizing & positioning)
• Supply of installation drawings
• Complete installation, supervision and commissioning if required

Options / accessories

• Material: steel or refractory stainless steel
• Fluid: compressed air or inert gas
• Temperature range: approx. 400–1200°C (depending on version)
• Manufacture: moulded or dished/cold-formed according to application
• Application: recommended for high-temperature environments; can be embedded in refractory concrete

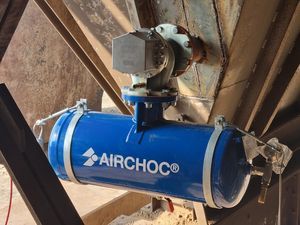

Isolator for AIRCHOC® air cannon
The AIRCHOC® isolator system allows a barrel to be isolated for safe maintenance. It protects the AIRCHOC® during special silo operations (explosive atmosphere, overpressure) and prevents product accumulation in the head or tank that can cause failures or reduced performance. The isolator can be installed on an existing nozzle between the nozzle flange and the AIRCHOC® flange. A padlock is included to permit lockout and isolate the supply. The AIRCHOC® can then be safely removed while the isolator remains connected.

Isolator advantages

• Protects the AIRCHOC® and maintenance personnel
• Remains attached to the connection if the AIRCHOC® is dismantled
• Easy operation due to large clearance and low moving-part mass
• Low thickness to preserve AIRCHOC® performance
• Can be installed vertically or horizontally
• Easy maintenance: removable slide gate in case of jamming or clogging

Characteristics / technical specifications

• Brand: Standard Industrie
• Product family: Nozzles / deflectors and isolators for AIRCHOC® air blasters
• Materials: steel or refractory stainless steel
• Available diameters: DN100, DN150
• Operating fluid: compressed air or inert gas
• Temperature range (high-temperature versions): approx. 400–1200°C
• Manufacture type: moulded or dished/cold-formed
• Typical application: cement plants (cooler, cyclone, smoke chamber, ducts, preheating towers)
• Accessory: isolator with padlock for safe maintenance
