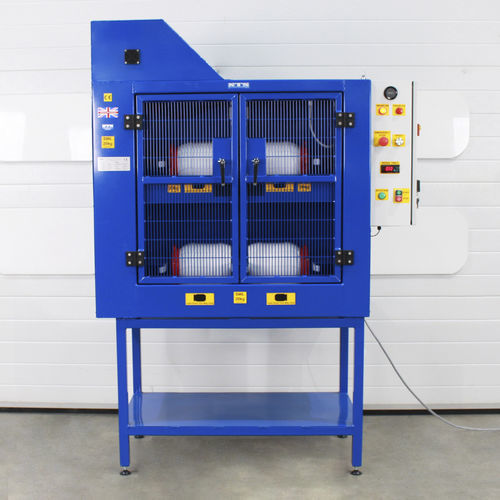

Rotary drum mixer DME04-230V

horizontalcontinuousbatch

Overview
The DME04 horizontal small drum mixer is engineered for ergonomic manual loading and repeatable batch mixing of small plastic drums and kegs. An operator can load up to four drums into the cabinet; closing the doors enables the electrical system and permits safe operation. Variable-speed control and an integrated mix timer support controlled batch processes. Optional ATEX/UKEX and stainless-steel configurations are available for hazardous or GMP environments.

Key features

• Mixes four small drums simultaneously using a belt-drive roller system
• Mixer control with mix timer, variable RPM controller and LED indicators
• Ergonomic manual loading: place drum on frame edge then push onto rollers
• Full safety guarding with visual inspection windows
• Safety gate interlocks: mixer operates only when gates closed; opening gates during a cycle stops mixing immediately
• Factory-configurable roller spacing to suit drum sizes from 3.6 L to 15 L (up to 350 mm height/diameter)
• Suitable for small screw-top plastic drums (example factory setup for 5 L drums)
• Fixed frame with adjustable levelling feet
• Optional ATEX / UKEX versions for zones 1, 2, 21 and 22
• Optional stainless-steel finishes for cleanroom / GMP applications

Technical specification

• Model designation: DME04
• Rated capacity: 20 kg per drum
• Drum compatibility: 3.6–15 L (up to 350 mm height/diameter)
• Rotation / speed: variable controller approx. 4–20 RPM (max 20 RPM)
• Power requirements: mains 230 V (or 120 V), single phase, 16 A
• Duty cycle: continuous 360° rotation
• Safety: full guarding, safety gate interlocks and emergency stop
• Controls: mix timer and speed adjustment included (ATEX variant omits mix timer)
• Construction: mild steel
• Surface finish: grit-blasted, primer and polyester powder coat (RAL 5010)
• Mobility: fixed machine with levelling feet
• Compliance: CE / UKCA

Optional features / Factory configuration

• ATEX / UKEX option for hazardous area use (zones 1, 2, 21, 22)
• Stainless-steel models and finishes for cleanroom / GMP areas
• Roller spacing and setup configured at factory to match customer drum dimensions
