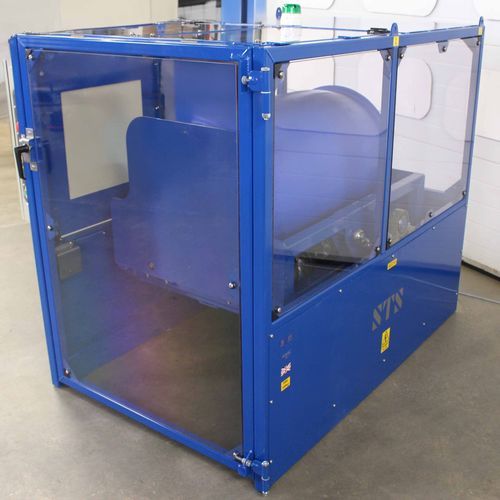

Rotary drum mixer DME02-230V-25RPM

continuoussolid/liquidpowder

Overview
Rotary drum mixer for mixing liquids, slurries, powders and granules in 200–220 L drums. Compatible with steel open-top, steel tight-head and L-ring plastic drums. Provides powered hydraulic tilt from vertical to horizontal and continuous rolling mixing at a fixed rotation speed.

Key features

• Quick drum loading: low baseplate allows use of standard drum trolleys and lifters; typical loading time <10 seconds.
• Hydraulic tilt: powered 0°–90° tilt for safe recline and mixing.
• Drum support: rollers support drum side walls to limit wear; compatible with 200–220 L steel and L-ring plastic drums.
• Heavy-duty construction: robust rollers, gearbox, motor and shaft assemblies for extended service life (20+ years design life).
• Electric control: control panel with powered tilt and mixing controls, built-in digital timer, indicator lights and emergency stop.
• Safety guarding: moving parts enclosed; machine requires doors closed for powered functions (safety limit switches and safety relay circuit).
• Low maintenance: continuous-duty operation (100% duty cycle).

Applications

• Mixing chemical liquids, slurries, powders and granules contained in 200–220 L drums.
• Suitable where repeatable, safe drum mixing and minimised drum wear are required.

Loading / handling compatibility

• Designed for loading by standard drum handling equipment; commonly referenced compatible machines: DTC01 (Universal Drum Trolley) and DTP08 (Counterbalance Drum Lifter).

Control & safety

• Electric control panel: controls for tilt and mixing, digital timer, status indicator lights and emergency stop; mains options: 230V (or 110/120V) single-phase, 16A.
• Safety features: interlocked doors, limit switches and safety relay to prevent operation with access open.

Technical specifications

• Model: DME02
• Rated capacity: 300 kg
• Drum compatibility: 200–220 litre drums — steel open-top; steel tight-head; L-Ring plastic drums
• Rotation speed: 25 RPM
• Power requirements: mains 230V (or 110/120V), single phase, 16A
• Duty cycle: continuous / 100%
• Loading time: <10 seconds (typical)
• Tilt: powered hydraulic tilt from vertical to horizontal (0°–90°)
• Design life: 20+ years
• Control features: digital timer, indicator lights, emergency stop
• Safety: fully enclosed guarding with safety limit switches and safety relay circuit
