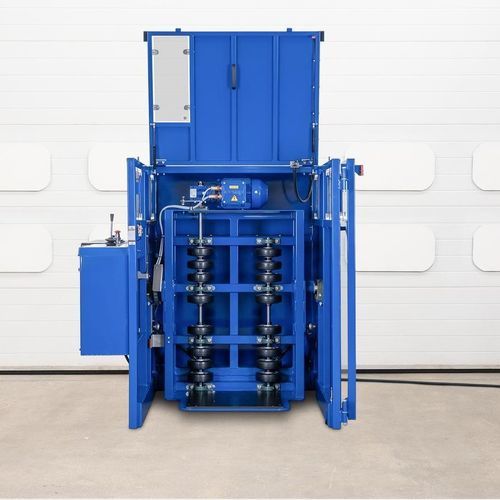

Rotary drum mixer DME02-230V-25RPM-Ex

continuousfor liquidsdrum

Product overview
The DME02-Ex is an electric ATEX drum roller mixer that agitates barrel contents and provides powered tilting for safe loading and positioning. It mixes liquids, slurries, powders and granules and accepts 200–220 L steel and sealed L-ring plastic drums. Designed for continuous industrial use with ATEX-compliant electric controls for hazardous areas.

Key features

• Quick and easy drum loading: low baseplate for trolley or lifter loading; typical loading <10 seconds
• Pneumatic-hydraulic powered tilt: motorised tilt 0°–90° to eliminate manual rolling and reduce drum damage
• Electric ATEX control: Ex d control panel with integrated speed control, status indicators and emergency stop
• Drum compatibility: supports 200–220 L steel open-top, steel tight-head and L-ring plastic drums; rollers support drum side walls
• Industrial components: heavy-duty rollers, gearbox, motor and shaft assemblies for long service life
• Safety guarding: all moving parts enclosed; unit requires doors closed (safety limit switches and safety relay circuit) before operation
• Low maintenance and continuous-duty design

Easy loading
Operators can load drums quickly using trolleys or lifters thanks to the low-positioned baseplate, enabling direct transfer from drum handling equipment.

Pneumatic / hydraulic tilt
The powered pneumatic/hydraulic tilt reclines a vertically loaded drum to the horizontal mixing position at the push of a button, reducing manual handling risks and protecting drums and contents when handling hazardous or flammable materials.

ATEX control interface
The Ex d electric control panel manages tilting and mixing functions, offers adjustable mixing speed, visual status indicators and an emergency stop; designed to meet ATEX requirements for hazardous areas.

Drum compatibility
Compatible with 200–220 L drums including steel open-top, steel tight-head and L-ring plastic drums. Rollers support the drum side wall to limit wear.

Guarding and safety
Moving parts are enclosed within a safety enclosure and safety limit switches plus a safety relay circuit prevent operation when doors are open, complying with regulatory guarding requirements.

Downloads & documentation
Technical specification and operating instructions are available; refer to the product technical specification and instruction manual for full details such as weight, dimensions and load capacity.

Technical specifications

• Model designation: DME02-Ex (commercial model identifier)
• Rated capacity: 300 kg
• Drum compatibility: 200–220 L (steel open-top, steel tight-head, L-ring plastic drums)
• Rotation speed: 25 RPM
• Power requirements: Mains 230 V (or 120 V), single phase, 16 A supply
• Duty cycle: Continuous / 100%
• Loading/unloading: compatible with universal drum trolley and counterbalance drum lifter
• Tilting: pneumatic / hydraulic powered tilt 0°–90°
• Construction: heavy-duty rollers, gearbox, motor and shaft assemblies
• Safety: fully enclosed guarding, safety limit switches and safety relay circuit
