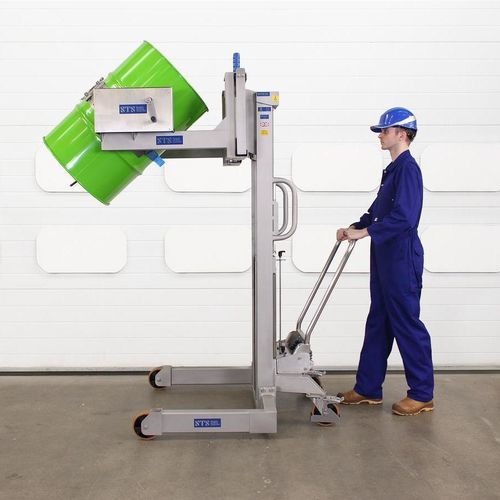

Manual drum lifter STM01-DRU01-SS

hand crankhand crankrotating

Overview
This INOX manual-hydraulic drum rotator provides ergonomic lifting and controlled decanting of drums across a wide size range. Constructed in stainless steel 304 with a vibratory-polished hygienic finish, it is suited to food, pharmaceutical and general industrial environments.

Key features

• Manual pump: two manual-hydraulic hand pumps on the rear handle for lift with a controllable lowering valve for descent; designed to comply with manual handling guidance.
• Universal drum band: segmented adjustable band with 50 mm stainless-steel ratchet and polyester strap; adjustable for diameters from 350 mm to 600 mm.
• Adjustable rim clamp: quick-fit rim clamp secures the drum top edge to prevent slippage (particularly effective on plastic drums); adjustable via securing pin.
• Robust gearbox: worm-wheel self-locking gearbox with 120:1 ratio and manual handle; locks when handle released to retain rotation position.
• Drum compatibility: handles steel, plastic and fibre drums from 50–220 litres, including MAUSER drums.
• ATEX available: models can be supplied ATEX/UKEX certified for zones 1, 2, 21 and 22 with anti-static wheels, guarding, earthing chains and documentation.
• Construction and finish: stainless steel 304-grade chassis; nickel/chrome-coated hydraulic lift ram; aluminium hand pump assembly shrouded in stainless steel; vibratory-polished finish for hygienic surfaces.
• Wheels: two fixed 160 mm front wheels and two tiller-steered 160 mm rear wheels (nylon-centred with polyurethane tyres and precision bearings).
• Low maintenance, long life: designed for durability with an expected 20+ year service life under normal use.

Use cases / Benefits

• Ergonomic lifting and decanting of drums in food, pharmaceutical and general industrial processes.
• Secure clamping for a broad range of drum types and sizes to reduce slip and spillage risk.
• Optional upgrades such as integrated weighing systems, fixed-diameter bands, small-drum inserts and ATEX certification to match process requirements.

Specification (summary)
Safe working load (SWL): 350 kg
Functions: Manual lift/lower, manual rotation, manual push/pull
Manual hand pump: Manual-hydraulic hand pump to lift; controllable lowering valve to lower; manual rotation, manual push/pull
Lift height: 1400 mm
Tipping clearance: 1400 mm at 15° tip angle / 1325 mm at 30° tip angle (205 litre drum)
Drum compatibility: Steel, plastic and fibre drums, 50–220 litres (incl. MAUSER drums)
Band assembly: Segmented adjustable/universal band with 50 mm stainless-steel ratchet and polyester strap
Rotation gearbox: Worm-wheel, self-locking with 120:1 ratio and manual handle
Construction: Stainless steel 304-grade chassis; nickel/chrome-coated lift ram; zinc-plated lift chains; aluminium pump shroud
Metal treatment: Vibratory polished stainless steel parts with a smooth clean finish
Guarding: Polycarbonate shatterproof clear guarding (anti-static versions for ATEX models)
Leg dimensions: Inside straddle width 850 mm; overall outside width 1080 mm
Front wheels: Two fixed 160 mm wheels, nylon-centred with polyurethane tyres and precision bearings
Rear wheels: Two tiller-steered 160 mm wheels, nylon-centred with polyurethane tyres and precision bearings
Compliance: CE / UKCA (ATEX / UKEX available for Ex models)

Technical specifications

• Model: STM01-DRU01-SS (see product model designation)
• Safe working load (SWL): 350 kg
• Lift height: 1400 mm
• Tipping clearance: 1400 mm @ 15° / 1325 mm @ 30° (for 205 L drum)
• Drum sizes handled: 50–220 L (steel, plastic, fibre; includes MAUSER)
• Band diameter range (universal): 350–600 mm (segmented, adjustable)
• Band mechanism: 50 mm stainless-steel ratchet with polyester strap
• Rotation gearbox ratio: 120:1 (worm-wheel, self-locking)
• Pump type: Manual-hydraulic hand pump with controllable lowering valve
• Materials: Stainless steel 304-grade chassis; nickel/chrome-coated lift ram; zinc-plated lift chains; aluminium pump shroud
• Finish: Vibratory polished stainless steel for hygienic surfaces
• Guarding: Polycarbonate shatterproof clear guarding (anti-static option for Ex model)
• Wheel specification: 160 mm nylon-centred wheels with polyurethane tyres and precision bearings (fixed front, tiller-steered rear)
• Leg dimensions: Inside straddle width 850 mm; overall width 1080 mm
• Optional upgrades: ATEX/UKEX configuration (zones 1,2,21,22); integrated load-cell weighing system (accuracy ±0.1 kg); alternative leg dimensions; fixed-diameter band for large drums; small-drum insert for <50 L drums
• Documentation available: Technical specification drawings, drum suitability document, operating instructions (PDFs available)
• Compliance / Certification: CE / UKCA; ATEX/UKEX available for Ex models
