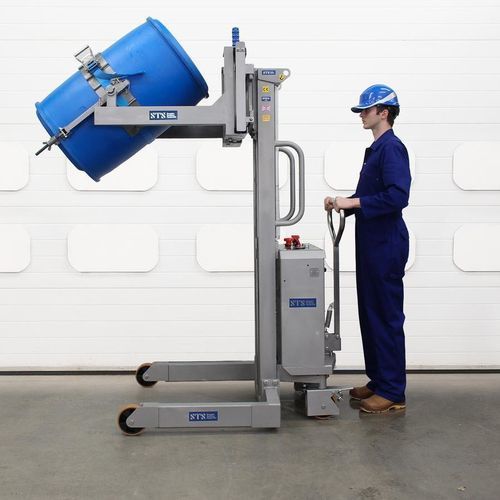

Electro-hydraulic drum lifter STE01-DRU01-SS

electricbattery-poweredhand crank

Overview
This stainless steel electric drum rotator is suitable for lifting and tipping 50-220 litre steel, plastic and fibreboard drums. Designed for pharmaceutical and food production facilities, the unit incorporates an electric-hydraulic power pack and control circuit to power the lift function.

Features

• Time-saving push-button electric lift: powered lift/lower protects operators from manual handling injuries and reduces task time.
• Universal segmented adjustable stainless steel band: accommodates drum diameters from 350mm to 600mm; includes 50mm stainless-steel ratchet and polyester strap.
• Adjustable rim clamp (rim-locking device): attaches to the drum top lip as a secondary security measure; fully adjustable in height; removable when using a fixed diameter band for 205L steel drums.
• Robust self-locking worm-wheel gearbox: final ratio 120:1; standard model operated manually via handle; powered rotation available as an upgrade.
• Rear-wheel Ackermann-style steering and 160mm diameter wheels with precision bearings: excellent directional control, low rolling resistance; machines fitted with park brakes; custom leg configurations available.
• Drum compatibility: handles steel, plastic and fibre drums including MAUSER drums; suitable for 50-220 litres.

Product highlights

• Safe Working Load (SWL): 350kg.
• Lifts from pallets; low maintenance; long lifespan (20+ years expected under normal use).
• Designed and manufactured in-house with performance and safety testing.

Specification
Safe working load (SWL): 350kg
Functions: Powered lift/lower, manual rotation, manual push/pull
Power details: On-board 100Ah battery powering an electric-hydraulic pump, mains 230V, smart battery charger
Controls: Silicone-booted buttons, emergency stop, removable key switch, digital battery condition meter
Lift height: 1500mm (standard single-mast model)
Tipping clearance: 1400mm at 15° tip angle / 1325mm at 30° tip angle (205 litre drum)
Drum compatibility: Steel, plastic and fibre drums, 50-220 litres (incl. MAUSER drums)
Band assembly: Segmented adjustable/universal band with 50mm stainless steel ratchet and polyester strap
Additional drum securing: Rim clamp included (grips top edge of drum)
Rotation gearbox: Worm-wheel self-locking gearbox with 120:1 ratio and manual handle (powered rotation available)
Construction: Stainless steel 304-grade chassis, steel nickel/chrome-coated hydraulic lift ram, steel zinc-plated lift chains
Metal treatment: Vibratory-polished stainless steel parts with a smooth clean finish
Guarding: Polycarbonate shatterproof clear guarding
Leg dimensions: Inside straddle width 850mm, total outside width 1080mm
Front wheels: Two fixed 160mm wheels, nylon-centred with polyurethane tyres and precision bearings
Rear wheels: Two tiller-steered 160mm wheels, nylon-centred with polyurethane tyres and precision bearings
Noise: < 76 dBA
Compliance: CE / UKCA

Upgrades / Options

• Integrated load-cell weighing system: digital read-out accuracy +/-0.1kg; weigh while handling; display powered by onboard 12V battery.
• Telescopic lift (dual-mast chassis): telescopic models offer up to 2700mm lift for higher tipping clearances.
• Powered rotation: hydraulic motor to replace manual rotation handle for time-critical pouring or when handle reach is an issue.
• Powered clamping: hydraulic ram with flexible pads to clamp 50-220L drums, eliminating manual band/ rim-clamp fitting.
• Powered driving: 24V drive wheel with electric tiller and controller for moving units over longer distances on flat, level floors.
• Fixed-diameter band: over-centre band for 200-220L drums to speed securing; rim clamp not required when using the band for steel drums.
• Small drum insert: adapter for drums under 50L, fitted using two pins; very short drums may require pallet support.

Caractéristiques / spécifications techniques

• Model designation shown on the product page: STE01-DRU01-SS
• SWL: 350 kg
• Standard lift height: 1500 mm (single-mast)
• Telescopic lift option: up to 2700 mm
• Drum sizes handled: 50–220 L
• Universal band diameter range: 350–600 mm
• Gearbox ratio: 120:1 (worm-wheel, self-locking)
• Battery: On-board 100Ah battery; mains 230V charger included
• Controls: Silicone-booted push-buttons, emergency stop, removable key switch, digital battery meter
• Wheels: 160 mm diameter, polyurethane tyres, precision bearings
• Construction materials: Stainless steel 304-grade chassis; nickel/chrome-coated lift ram; zinc-plated lift chains
• Noise level: < 76 dBA
• Compliance: CE / UKCA
