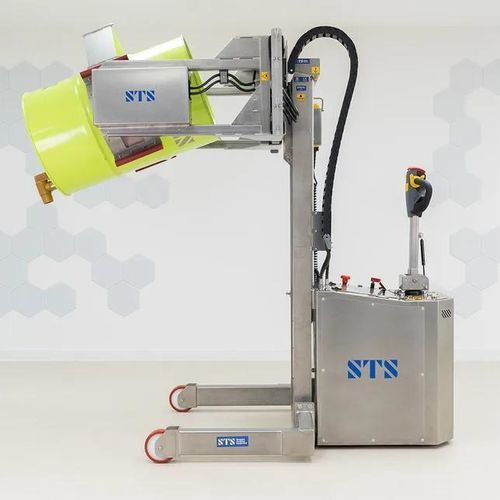

Pneumatic drum lifter STE05-RRH01-SS

electro-hydraulicelectricbattery-powered

Overview
Fully powered electric or pneumatic stainless-steel drum tipper engineered for hygienic food and pharmaceutical environments. Available as an electric-hydraulic model (on-board batteries with integrated mains smart charger) or as a pneumatic-hydraulic ATEX/UKEX-certifiable variant. Constructed in 304-grade stainless steel with aqua-blasted and vibro-polished hygienic finish for long service life (design life >20 years).

Key features

• Two power options: Electric — two built-in 142 Ah batteries driving an electric-hydraulic pump and electric drive motor; Pneumatic — pneumatic-hydraulic double-acting pump for ATEX/UKEX hazardous-area use.
• Fully powered functions: lift, clamp, rotation and drive for safe, hands-off handling.
• Simple steerable tiller drive with throttle control and anti-trap safety switch; precise drive control available via control hoses in the steering tiller.
• Hydraulic constant-tension clamping head with pressure gauge providing secure clamping and ‘hands-off’ operation.
• Interchangeable clamping pads to match drum contours; optional fixed-radius rubber-lined pads for standard 200–220 L drums.
• Compatible with a wide range of drums: UN-approved steel drums, common plastic and fibre drums and MAUSER drums. Standard handling range 50–220 L; pad-adaptable diameters 280–610 mm; suitable for drums up to ~1000 mm height.
• Hygienic construction and finishes: 304-grade stainless steel, polycarbonate shatterproof guarding (anti-static on ATEX models), conductive/anti-static components and earthing chains where required.
• Low-maintenance design intended to increase throughput and reduce manual handling risks (quoted >50 drums/hour; compatibility >95%).

Capabilities & operation

• Electric model: two integrated 142 Ah batteries power the electric-hydraulic pump and drive motor; integrated 230 V mains smart charger inside the control box.
• Pneumatic (ATEX) model: pneumatic-hydraulic double-acting pump. Air requirements: minimum 400 L/min, optimum 760 L/min at 6 bar using a 13 mm flexible air hose. Includes electrically conductive tyres and anti-static measures for hazardous zones.
• Controls: silicone-booted push buttons, emergency stop, removable key switch and digital battery condition meter; optional wired pendant controller with emergency stop for remote lift/rotation control.
• Drive: steerable tiller with throttle controls; 700 W heavy-duty rear drive wheel with polyurethane tyre; two fixed 160 mm front wheels (aluminium-centred, polyurethane tyres, precision bearings).
• Options & upgrades: pendant controller, integrated load-cell weighing system (accuracy ±0.1 kg), telescopic lift for extended stroke (options to 2800+ mm), alternative leg/straddle dimensions, ATEX-certified pneumatic variant and bespoke pad/head adaptations.

Applications
Designed for safe decanting, dosing and transfer tasks in manufacturing, food and pharmaceutical production where stainless construction and hygienic finishes are required. Suitable for lifting and tipping drums from pallets, loading into tanks or dosing stations, and for use in zones requiring ATEX certification when equipped with the pneumatic variant.

Specifications

• Model (examples): STE05-RRH01-SS (electric) / STP05-RRH01-SS-Ex (pneumatic ATEX)
• Safe working load (SWL): 300 kg
• Functions: powered lift, clamp, rotation and drive
• Power (electric): two built-in 142 Ah batteries; electric-hydraulic pump; integrated mains 230 V smart charger
• Power (pneumatic): pneumatic-hydraulic double-acting pump; air requirements min. 400 L/min, optimum 760 L/min at 6 bar (13 mm hose)
• Controls: silicone-booted buttons, emergency stop, removable key switch, digital battery condition meter
• Lift stroke: 1515 mm (standard)
• Tipping clearance: 1415 mm at 15° / 1338 mm at 30° (205 L drum)
• Drum compatibility: steel and plastic drums 50–220 L standard (incl. MAUSER); pad-adaptable 280–610 mm diameters; handles drums up to ~1000 mm height
• Clamping: hydraulic constant-tension clamping head with pressure gauge
• Rotation: powered gearbox assembly (full inversion to 180° possible)
• Construction: 304-grade stainless steel (aqua-blasted, vibro-polished finish)
• Guarding: polycarbonate shatterproof guards (anti-static guards on ATEX model)
• Leg dimensions: inside straddle width 850 mm; total outside width 1080 mm (alternative leg sizes available)
• Front wheels: two fixed 160 mm wheels, aluminium-centred with polyurethane tyres and precision bearings (electrically conductive polyurethane tyres on ATEX model)
• Rear drive wheel: 700 W heavy-duty drive wheel with polyurethane tyre
• Noise: <76 dBA
• Compliance: CE / UKCA; ATEX / UKEX certification available for pneumatic models (zones 1,2,21,22)
